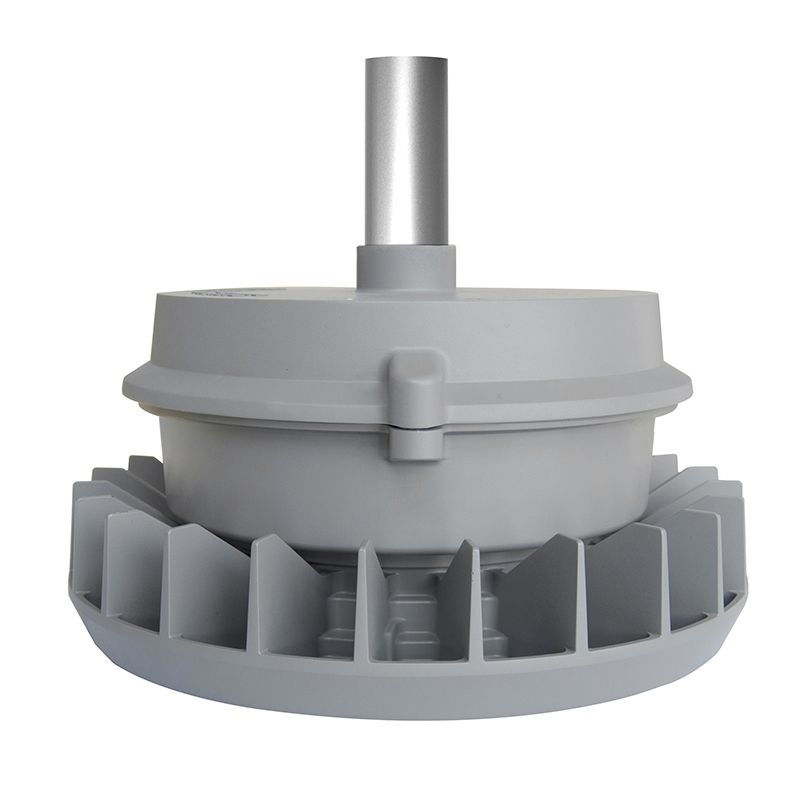

Warrior™ FEL-D Low Bay
Product description
The Warrior™ NJZ-FEL-D Series LED Luminaire is designed for installations where moisture, dirt, dust, corrosion and
vibration may be present, or NEMA 3 and 4X areas where wind, water, snow or high ambient can be expected.
They can be used in locations made hazardous by the presence of flammable vapors or gases or combustible dusts as
defined by the NEC.
NJZ-FEL-D Series is ideal for retrofit of existing HPS/MH and offers higher efficacy for increased energy savings, lower
maintenance costs and shorter paybacks.
Features / Advantages
- High luminous efficacy-Up to 150 Lm/W
- Input Voltage: AC120-277V，AC347-480V (50/60Hz)
- Instant illumination and restrike-no warm-up time required
- Safe and reliable heat transfer-Offering a T-rating of T4A (CID2) / T5 (CIID1)
- Shock and vibration resistant-Durable LEDs with solderless board connection
- Die-cast aluminum body and frame-corrosion resistant
- All exposed fasteners with quality stainless steel
- High Temperature silicone gasketing
- Thermal shock and impact resistant tempered
Compliance
NEC/CEC Standard
- UL844
- Class I Division 2, Group A, B, C, D
- Class II Division 1, Group E, F, G
- Class II Division 2, Group F, G
- Class III, Division 1
- Class I, Zone 2, Group IIC
- Zone 21, Group IIIC
- Simutaneous Presence
- UL 1598 Wet Locations
- UL 1598A Marine Outside Type (Salt Water)
- CSA C22.2 No. 137
- CSA C22.2 NO. 250.0
- FCC
- IP66
- IK08/IK07(Drop Lens)
- 5G vibration
- 1000hrs salt spray
Application
- Power Plants
- Heavy Industrials Storage Facility
- Paper mills
- Wastewater Treatment Plants
- Loading Docks Platforms
- Shipyards
- Chemical Processing Facility
- Petrochemical Processing Facility
Warranty
LED lumen Maintenance：L70>150,000 Operation Hours@55℃
7 Mounting Options
Swivel Surface
Wall 25°
Swivel Surface
Stanchion 90°
Ceiling Mount
Stanchion 25°
Wall 90°
1 Min Installation
Entry
Hinged design for hands-free wiring during installation and servicing.
Connect
Built-in three WAGO 211 lever Connector with 3-pole 4mm² max conductor for easy wiring
Finish
Captice screw applied for secure fastening and quickly re-installation of wiring
3 Lens Option
Clear
For Max lumen output
Diffused
For Minimum glare
Well Glass
For Wide beam spread
Protect your investment
Surge protector accessories available to add and protect the device from voltage spikes
Protect your investment
Wire guard accessories available to add and protect the device from impact
Extra safety
Safety cable accessory available to add and protect the device from dislocation
