Straight Ball valve

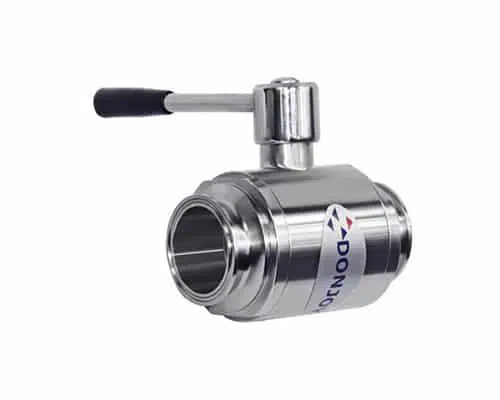

Straight Ball valve, both manually and automatically operated valve are mainly used in processing beverages, wine, oil refining, cosmetics and chemical industries.
Description
- Size：1/2″-4″,DN10-DN100
- Temperature：-20℃ – 120℃
- Pressure：10-bar
- Material：AISI 304 316L
- Smaller and lighter than the other valve
- Operating torque is small
- Gaskets:PTFE FDA 177.1550
- Whatever the connection is, it does not change the total length of the valve
- Connection : Clamp, weld, thread, Flange, DIN、SMS、RJT、FIL

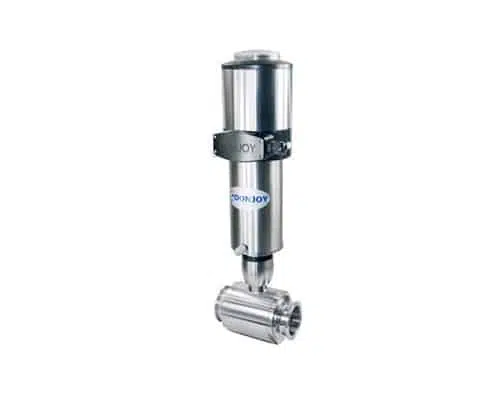

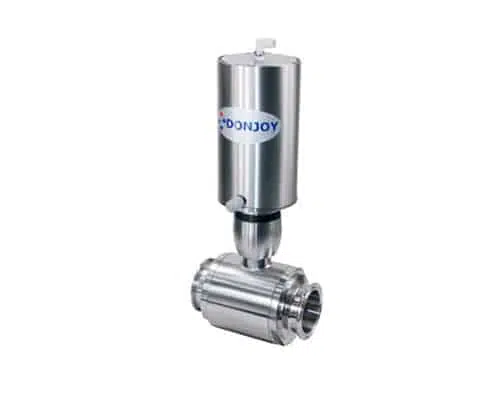

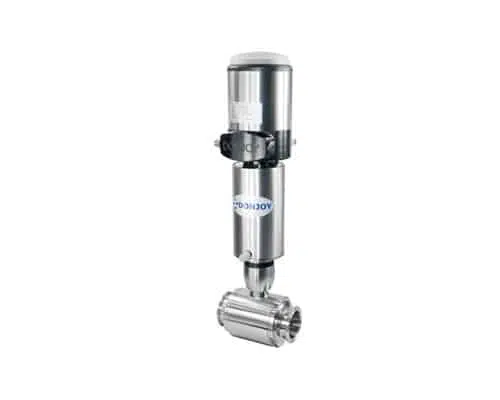

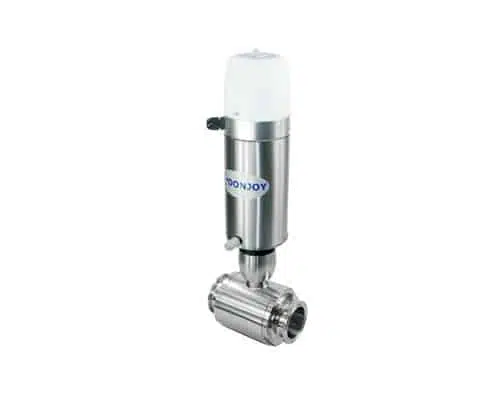

- Can be equipped with pneumatic actuators, electric actuators
- Material contact parts:AISI，304/316L
- Certificate：PED/97/23/EC
