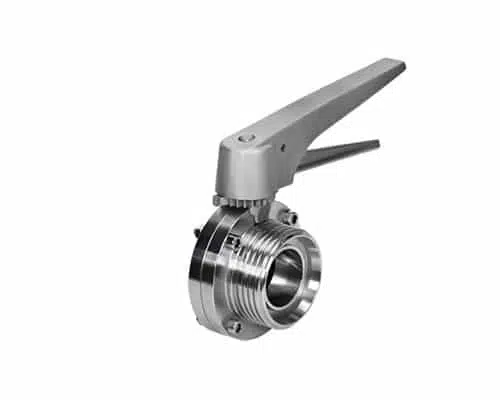

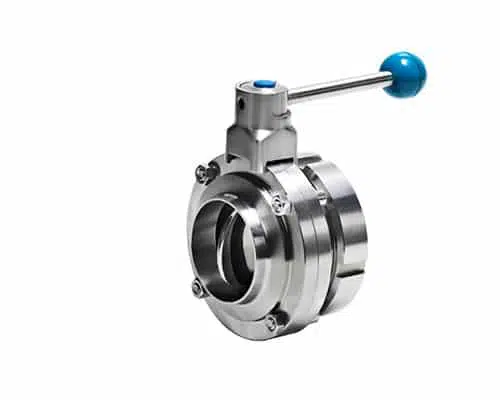

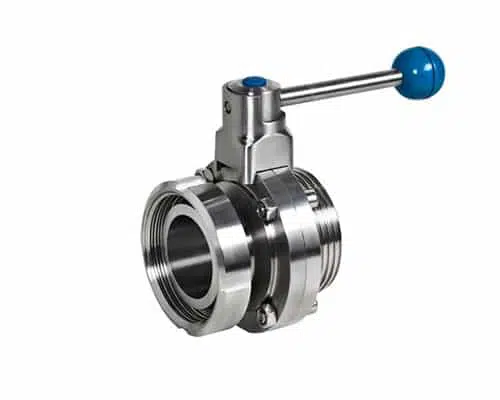

Single Weld Single thread Butterfly Valves

Butterfly valve whatever manual or automatic operation can be used in food processing, pharmaceutical and chemical products, industrial fluid applications.

Description

• Size: DN10-DN300, 1/2″-12″
• Temperature: 130 ℃
• Pressure: 10bar
• Material: ASTM T304 / T316L, 1.4301 / 1.4404
• Connection: Threaded, Flange Welding, Clamp, etc.
• Operation Standard: DIN SMS RJT 3A ISO IDF
• Manual operation: Muti-handles, Pull handles
• Certificate: PED / 97/23 / EC, health wading license
• Pneumatic Operation: Single acting, Double acting, Triple action
