Pressure Gauge KGB4

Features

Pressure Gauge KGB4

Mechanical pressure gauge

With liquid-filled case for applications with high dynamic pressure loads or vibrations
For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive ambience
Process industry: Chemical/petro-chemical, power stations, mining, on- and offshore, environmental technology, machine building and general plant construction

[penci_button link=”https://page.line.me/006xhmgy” icon=”fa fa-comments” icon_position=”left” target=”_blank”]ขอใบเสนอราคา[/penci_button] [penci_button link=”/wp-content/uploads/2023/06/KUGA-KGB4-Pressure-Gauge-Rev-A.pdf”]ดาวน์โหลด Catalog[/penci_button]

ขอใบเสนอราคา

ปรึกษาวิศวกร

Category: Solenoid Valves Tags: Gauge, KUGA, Pressure Gauge, Pressure Gauge KGB4, เกจวัดแรงดัน Brand: KUGA

Pressure Gauge KGB4

Features

Mechanical pressure gauge

With liquid-filled case for applications with high dynamic pressure loads or vibrations
For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive ambience
Process industry: Chemical/petro-chemical, power stations, mining, on- and offshore, environmental technology, machine building and general plant construction

Technical Data

Housing
Nominal size	50 mm
Case material	Stainless steel 1.4301 / AISI 304
Type of housing	Crimped bezel ring
Bezel ring material	Stainless steel 1.4301 / AISI 304
Window material	Polycarbonate
Window gasket	Elastomer
Protection rating (EN 60529)	IP55
Dial	White, aluminium
Pointer	Black, aluminium
Movement material	Brass

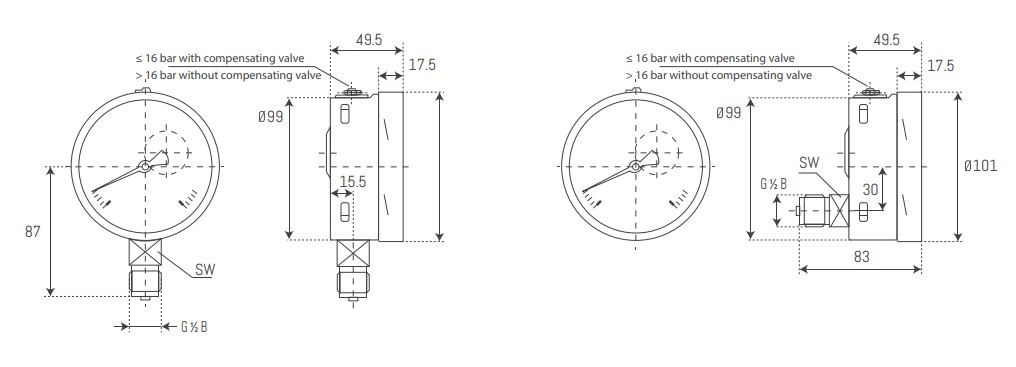

Dimension (mm)

ค่า	20W / "l" 40W / "l" 50W / "l" 60W
