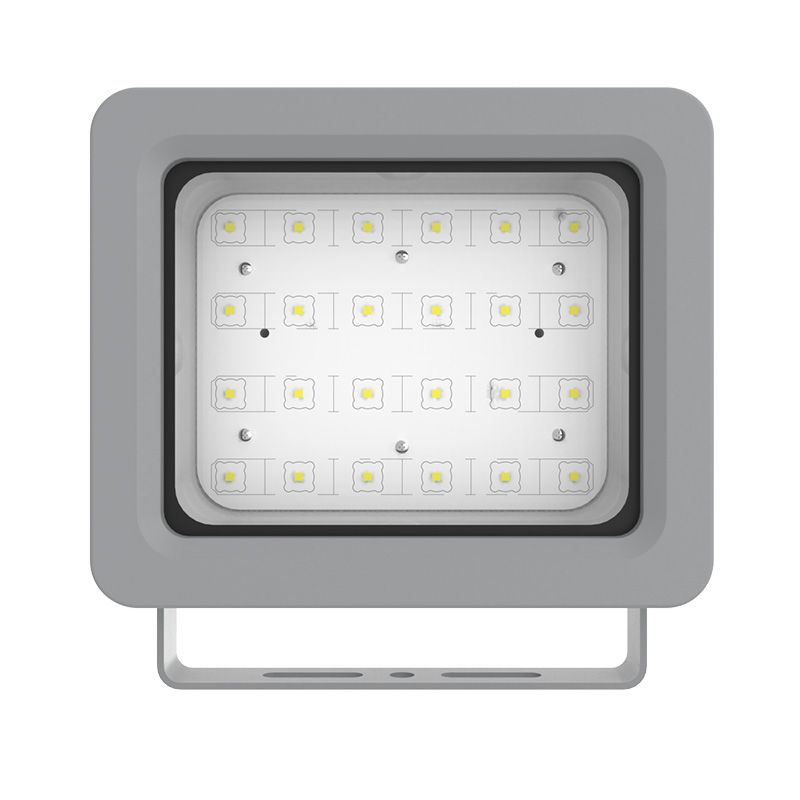

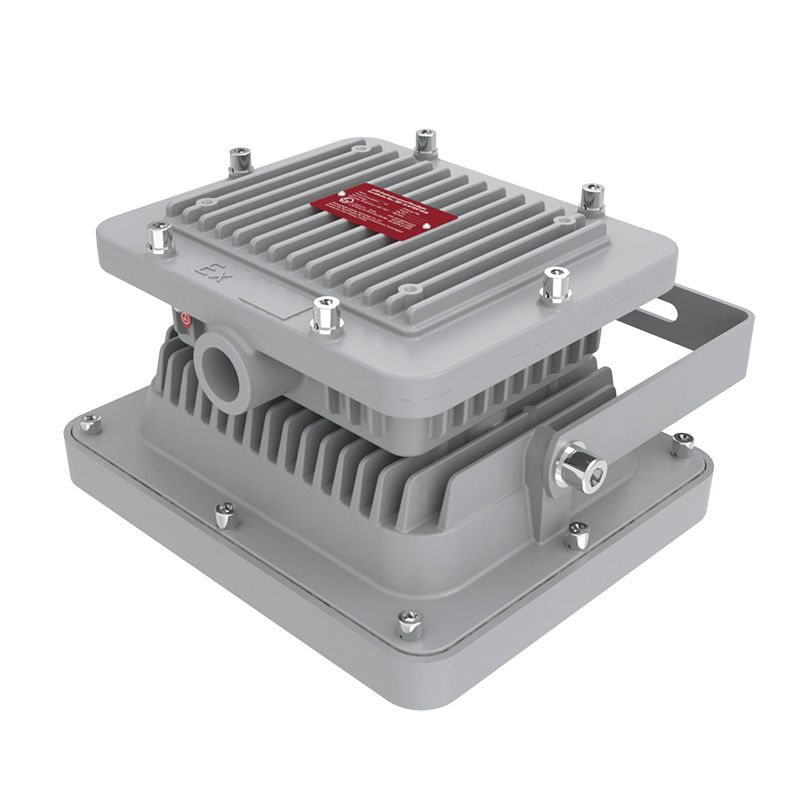

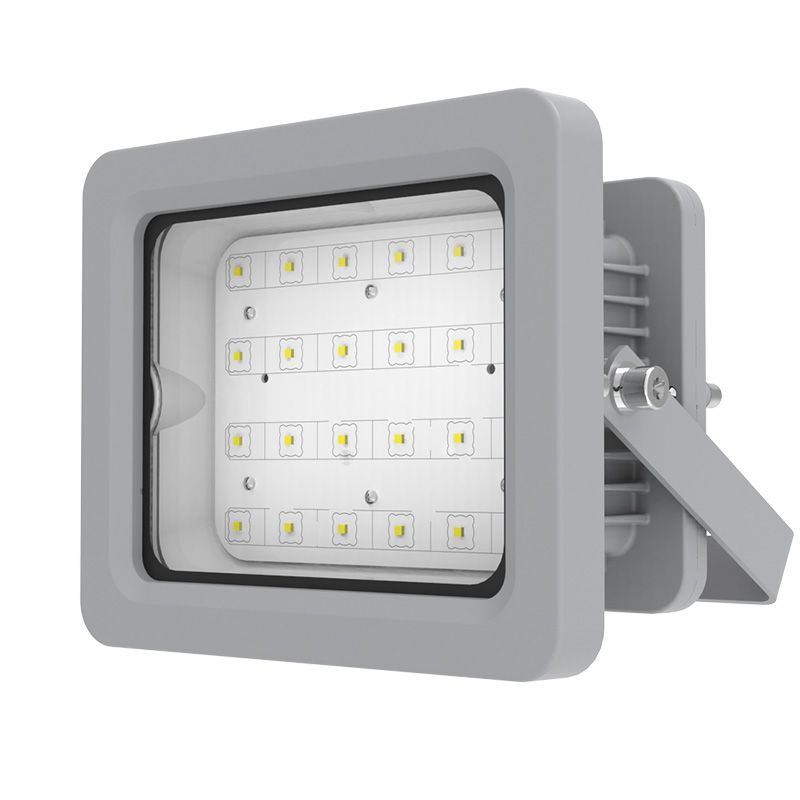

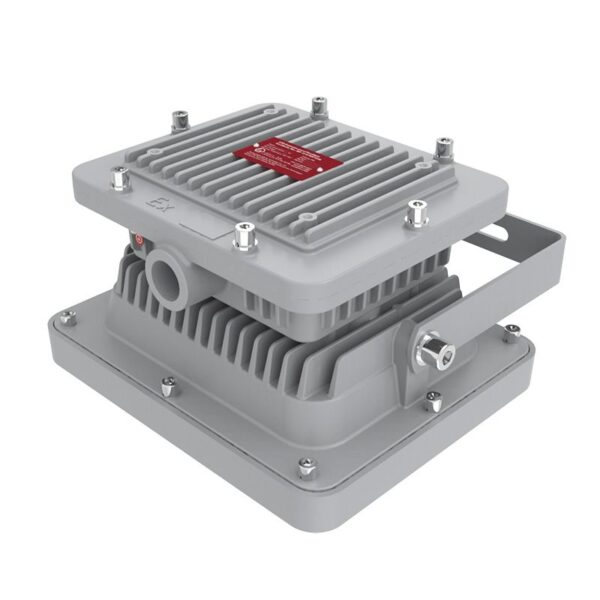

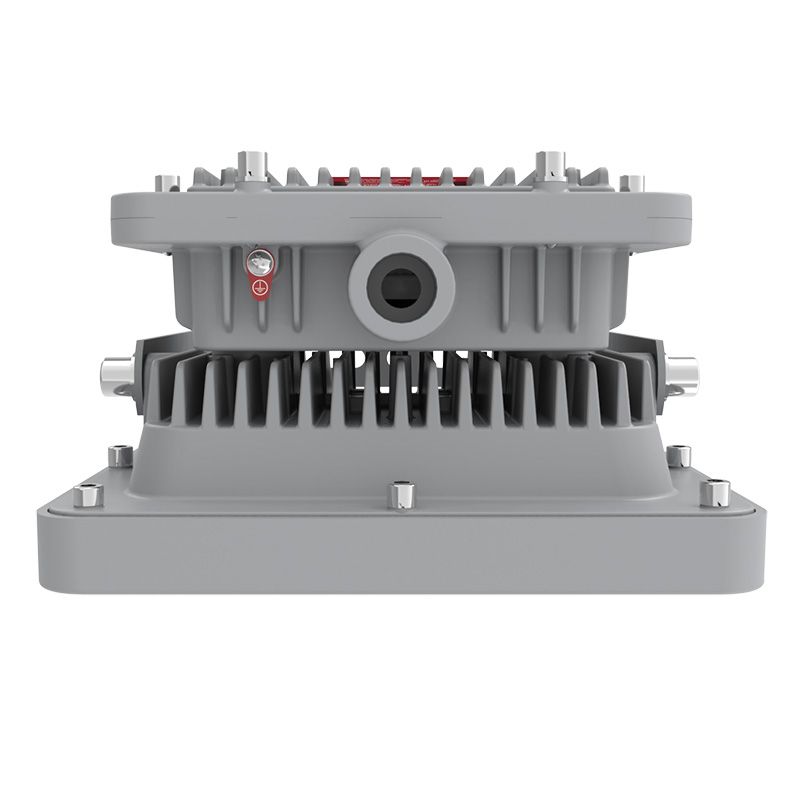

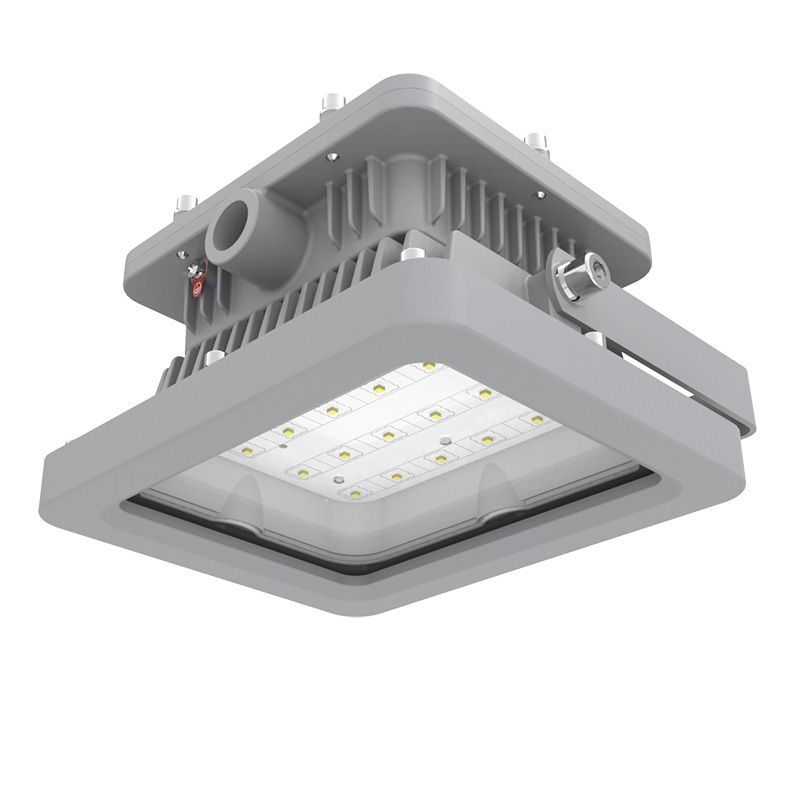

Defender™ FEL-B Low Bay
Product description
The Defender™ NJZ-FEL-B Series LED Luminaire is designed for installations where moisture, dirt, dust, corrosion and
vibration may be present, or areas where wind, water, snow or high ambient can be expected.
They can be used in locations made hazardous by the presence of flammable vapors or gases or combustible dusts as
defined by ATEX.
NJZ-FEL-B Series is ideal for retrofit of existing HPS/MH and offers higher efficacy for increased energy savings, lower
maintenance costs and shorter paybacks.
Features / Advantages
- Instant illumination and restrike no warm-up time required
- Wide power range from 20W to 60W
- High luminous efficacy-Up to 120 Lm/W
- Universal Voltage: AC100-270V (50/60Hz)
- Optional lighting distribution 25°, 60°, 110°
- Anti-corrosion aluminum housing tested 1000hrs to standard ASTM”B117-11” (Marine reinforced ver. available upon request)
- All exposed fasteners with quality stainless steel 316
- Robust design rated with IP66 / IK08 / 5G
Compliance
ATEX Standard
Ex II 2G Ex d IIB T5 Gb
Ex II 2D Ex tb IIIC 95℃ Max Db IP 66
EN 60079-0, EN 60079-1, EN 60079-31
Zone 1,21
Zone 2,22
Ta.-30~+50℃
Enclosed and Gasketed
IP66
IK08
5G
1000hrs salt spray
Application
- Power Plants
- Heavy Industrials Storage Facility
- Paper mills
- Wastewater Treatment Plants
- Loading Docks Platforms
- Shipyards
- Chemical Processing Facility
- Petrochemical Processing Facility
Excellent Performancet at A Competitive Price
Provide 70-175W HID/MH equivalent lighting (2,000 to 6,000Lm) that saves 70% percent in maintenance and energy costs

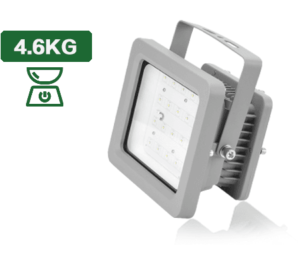

Light-weight Design
For easy handling, especially when working 20 feet above the floor
3 Optic option
25°/ 60°/ 110°available for different applications from spot to flood for optimal light distribution
25°
60°
110°

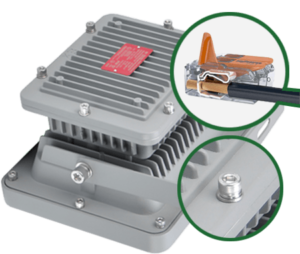

Easy Installation
- Built-in three WAGO 221 Lever Connector with 3-pole 4mm² max conductor for easy wiring
- Captive screw applied for secure fastening and quickly re-installation of wiring compartment
Protect your investment
Surge protector accessories available to add and protect the device from voltage spikes
No-compromise Warranty
NJZ warrant to the original purchaser, all delivered products should be free from defects in the material and workmanship for up to 5-Year from the date of installation (or 30 days after date of shipment to the Purchaser)
LED Maintenance
L70 rated life of 100,000 hours which means to last 11 years at 24 hours daily operation
