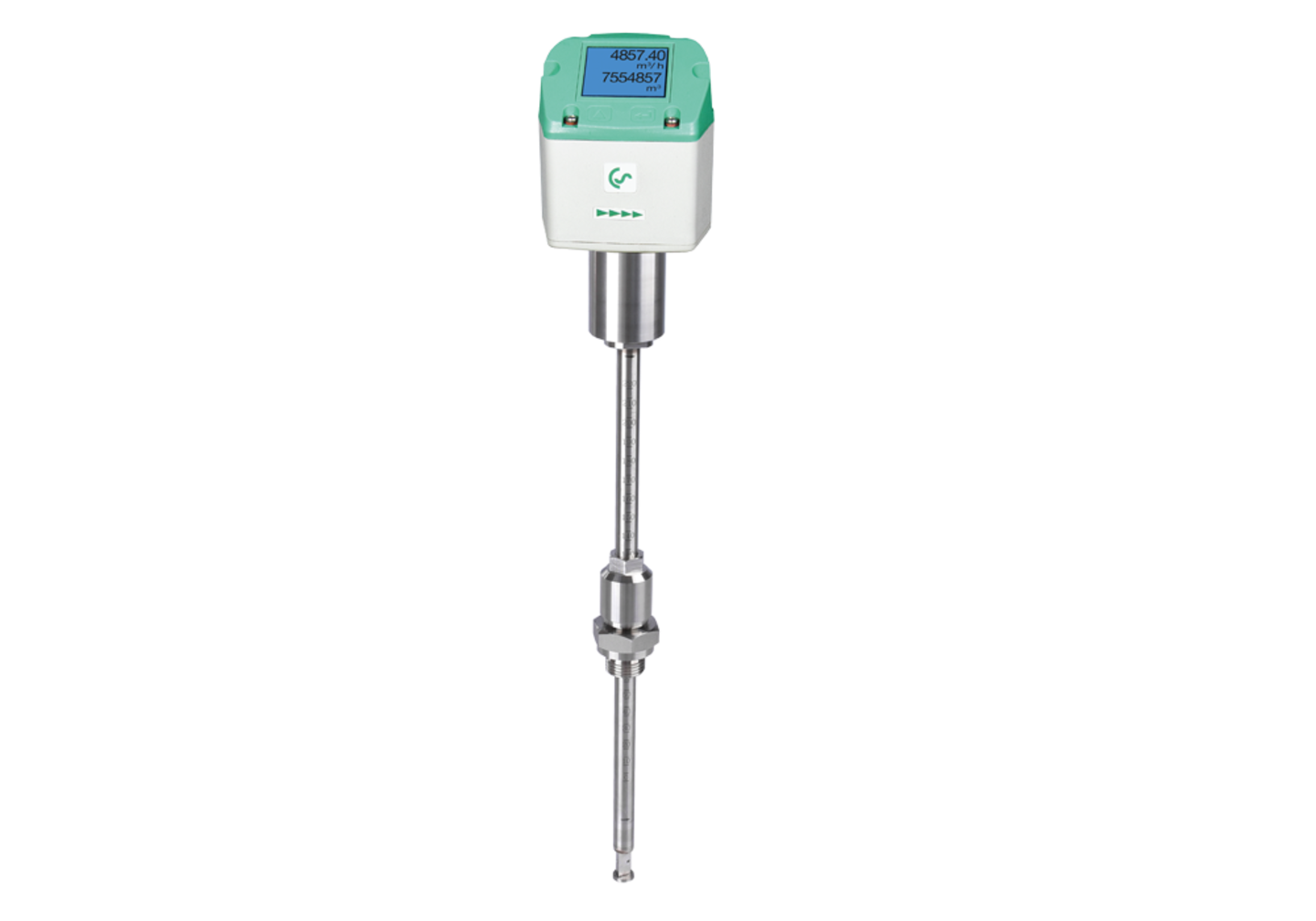

VD 500 – Flow sensor for wet compressed air

Features

VD 500 – Flow sensor for wet compressed air

Reduce your energy costs and increase your efficiency with the VD 500. Suitable directly for measurement after the compressor. Monitor the delivery rate of your compressor and create a FAD analysis.

Measurement immediately downstream of the compressor
Measurement at high temperatures

Details

thus covers the complete operating range of variable speed drive (VSD) compressors
Particularly suitable for extremely high flow rates
Flow, total consumption, temperature and pressure
Measurement at high temperatures, max. temperature 180 °C
Can be used in pipes from DN 20 to DN 600

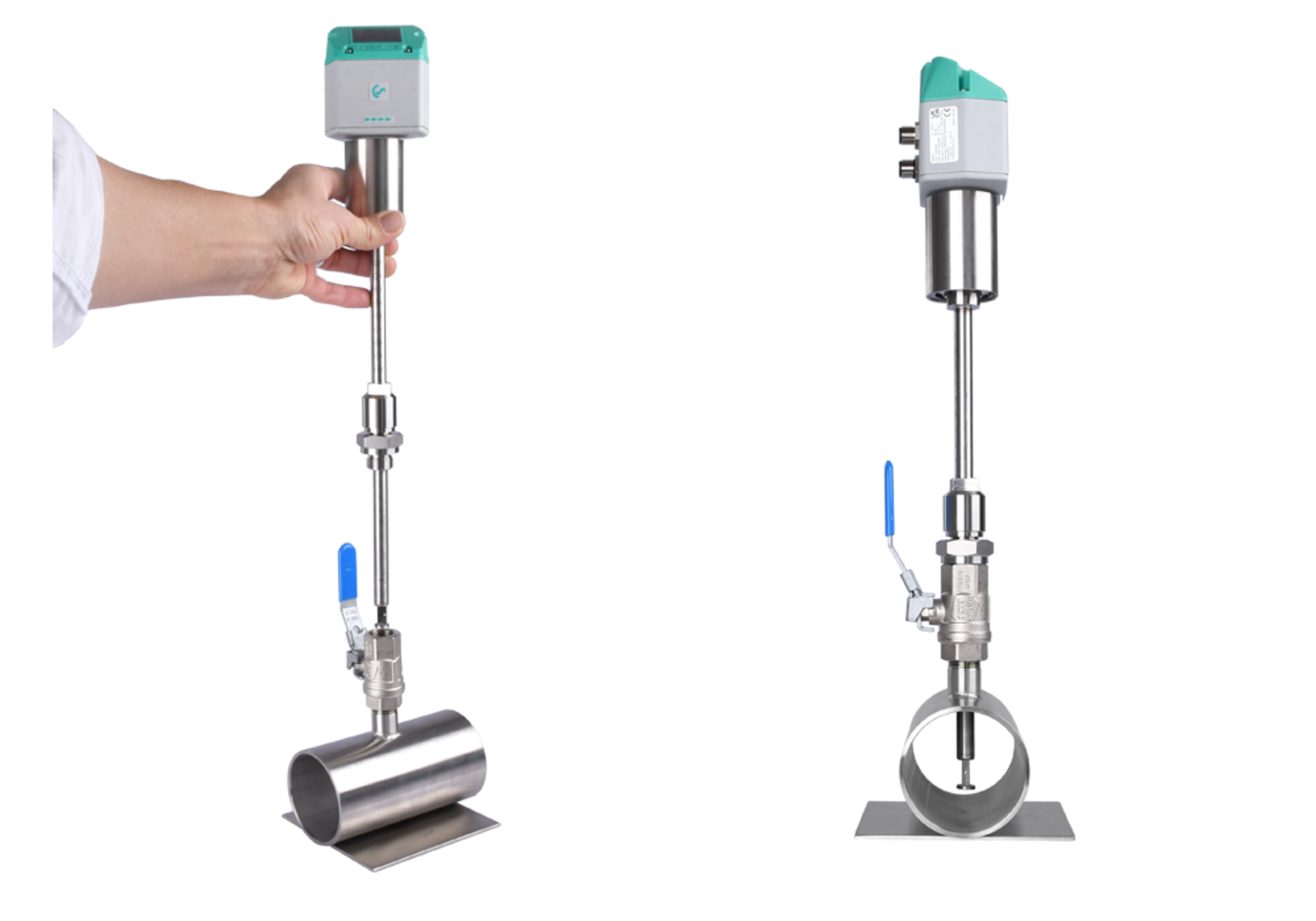

Installation via 1/2″ ball valve under pressure
Measurement of the capacity of compressors
Compressed air audits
Efficiency measurement of compressed air systems
After functioning water separator
In horizontal lines (recommended) or in risers
04…20 mA, pulse and a Modbus RTU (RS 485) interface as standard
Optional interfaces like Modbus TCP (Ethernet), PoE, M-Bus
Pressure range up to 30 bar
Temperature of the medium -30 ° … +180 °C

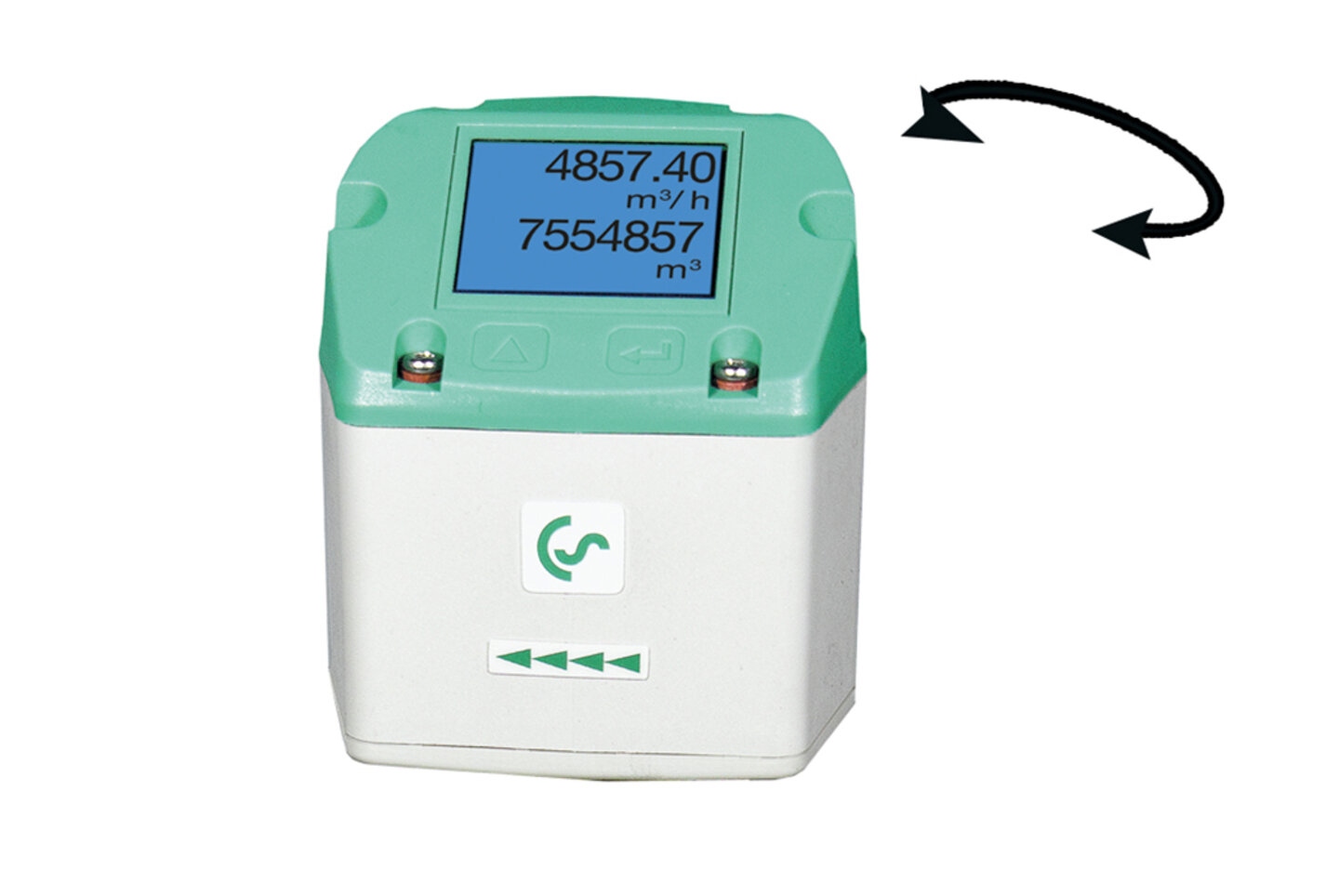

Integrated display to show the measured values
Available from DN20 to DN500

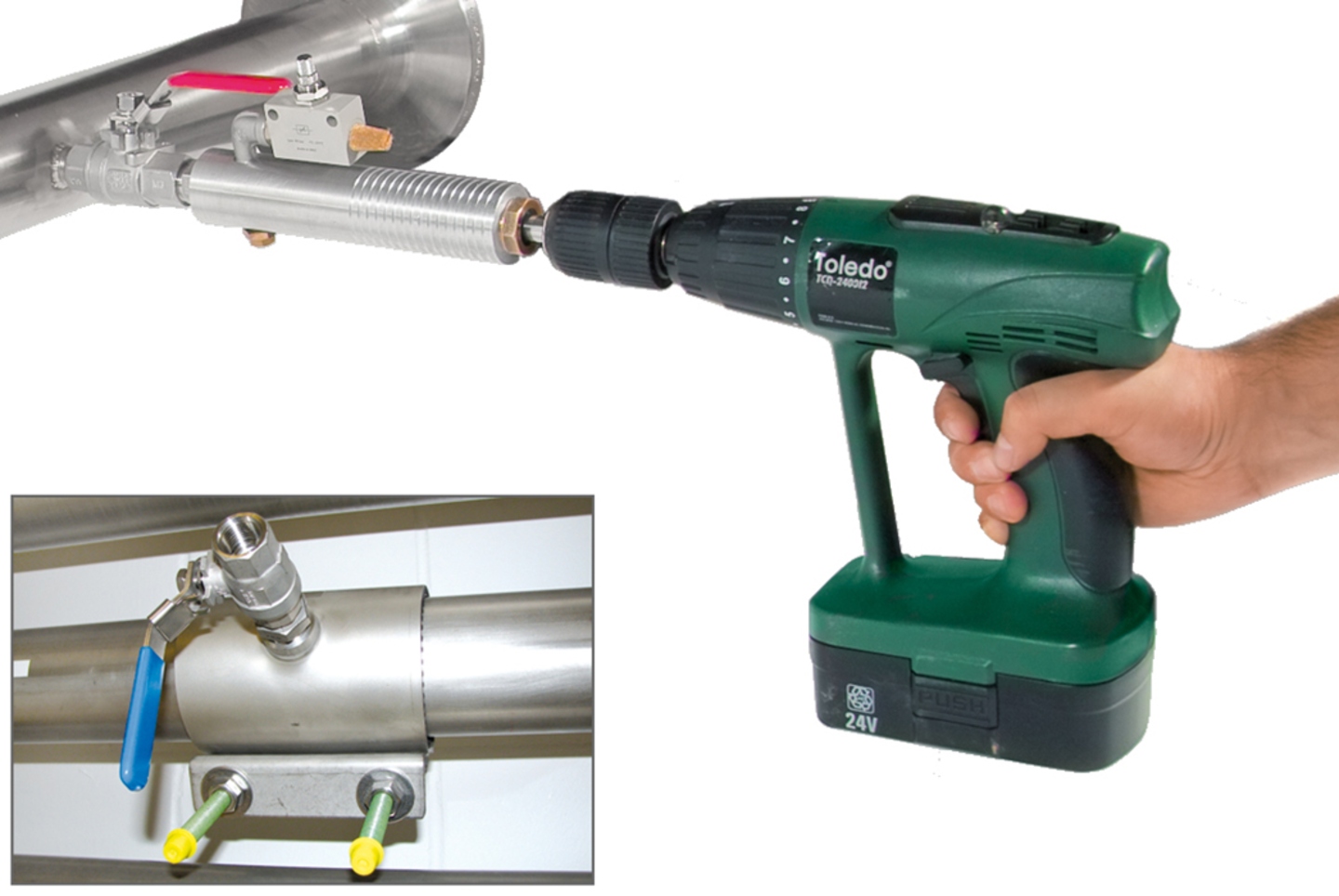

Easy installation under pressure

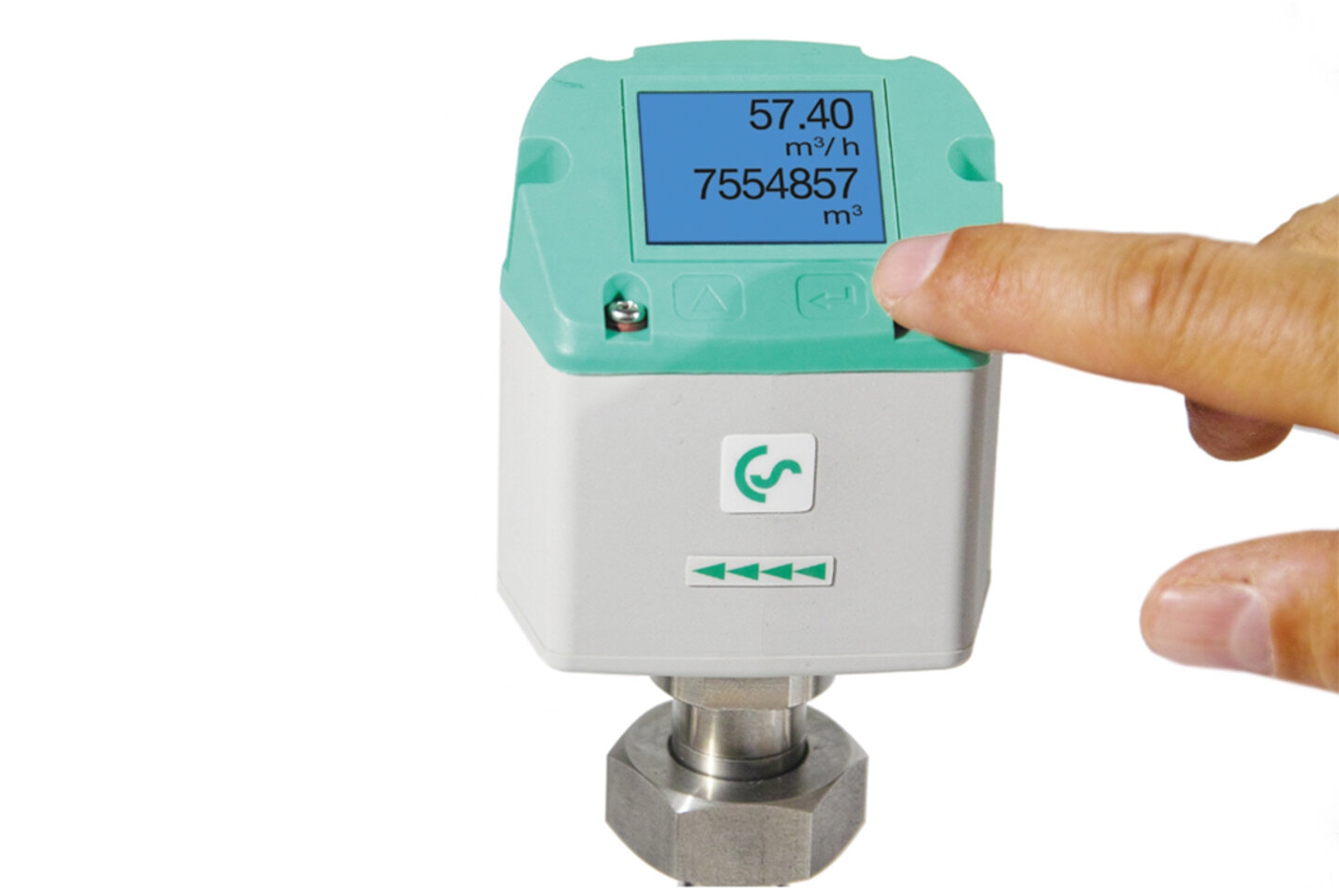

Settings adjustable via the keys of the display
Main counter reading can be reset via the display
Can be used for velocities up to 600 Nm/s
High accuracy with 1.5% deviation of the measured value

[penci_button link=”https://page.line.me/006xhmgy” icon=”fa fa-comments” icon_position=”left” target=”_blank”]ขอใบเสนอราคา[/penci_button] [penci_button link=”/wp-content/uploads/2023/06/KUGA-KGB4-Pressure-Gauge-Rev-A.pdf”]ดาวน์โหลด Catalog[/penci_button]

ขอใบเสนอราคา

ปรึกษาวิศวกร

Category: Solenoid Valves Tags: cs-instruments, Flow meter, VA 500 Brand: CS-Instruments

VD 500 – Flow sensor for wet compressed air

Features

Reduce your energy costs and increase your efficiency with the VD 500. Suitable directly for measurement after the compressor. Monitor the delivery rate of your compressor and create a FAD analysis.

Measurement immediately downstream of the compressor
Measurement at high temperatures

ค่า	20W / "l" 40W / "l" 50W / "l" 60W
