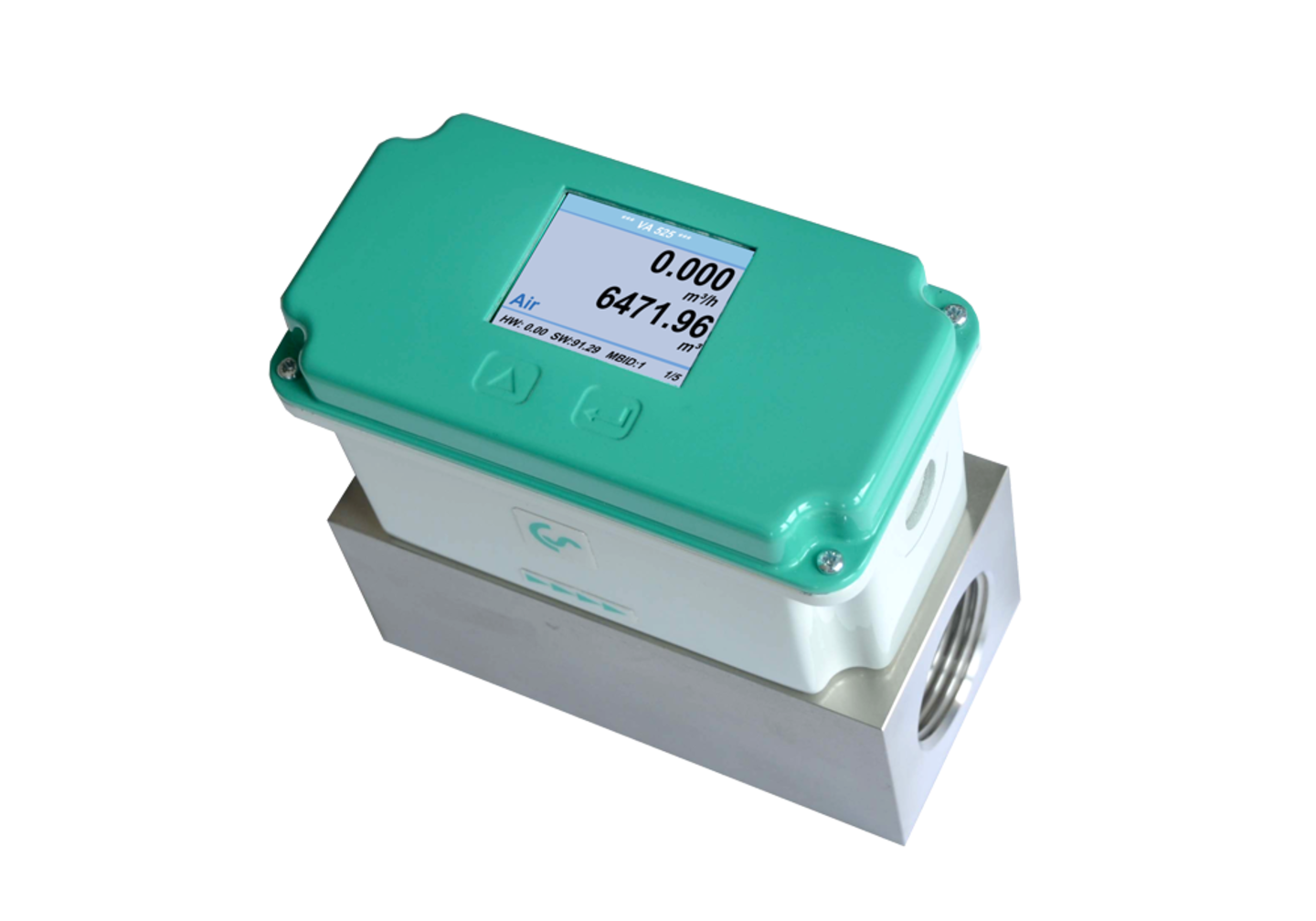

VA 525 – Compact Inline flow meter for compressed air and nitrogen

Features

VA 525 – Compact Inline flow meter for compressed air and nitrogen

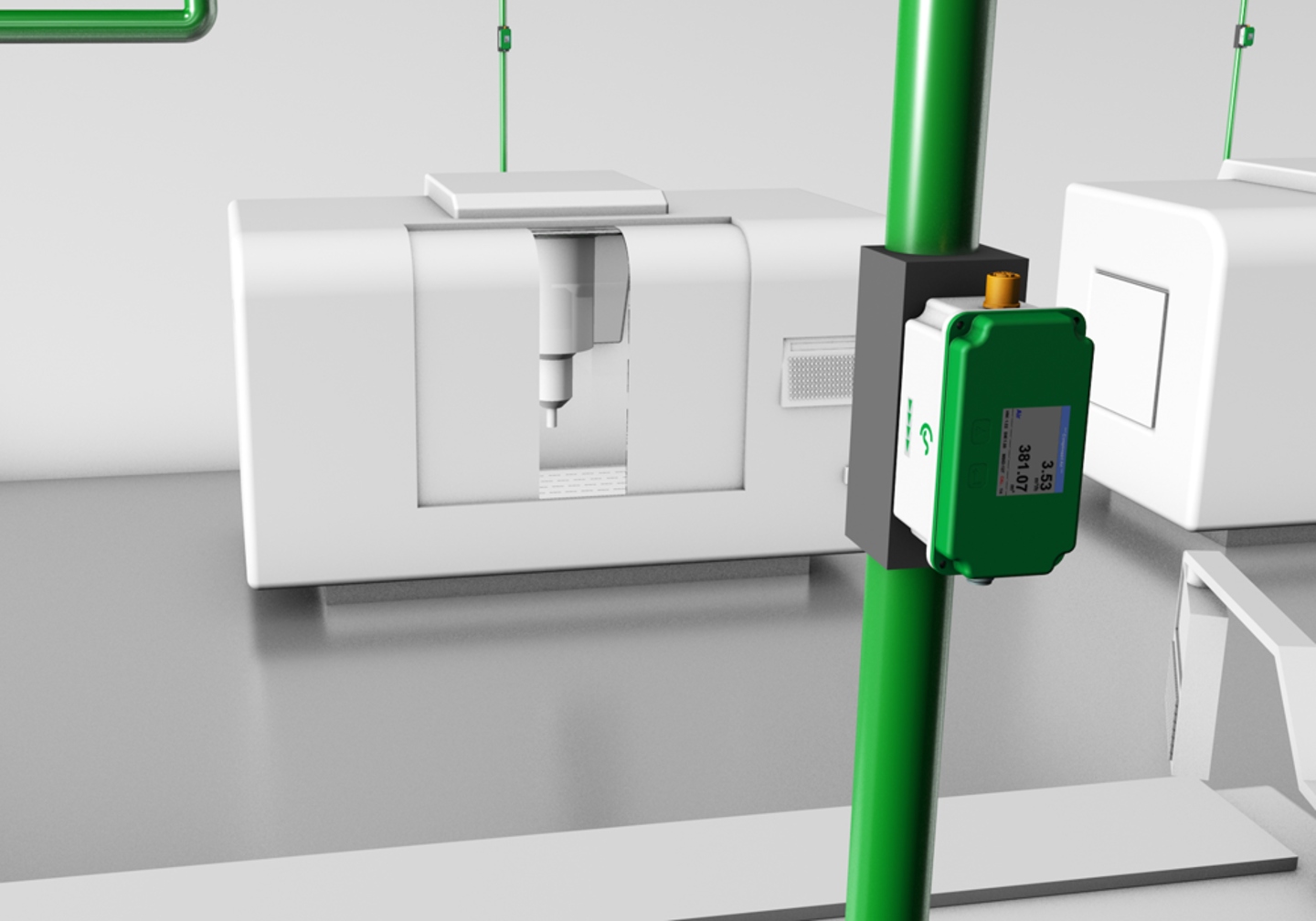

The innovative VA 525 combines modern digital interfaces for connection to an energy monitoring system with a small, compact design. The VA 525 is always used when many machines (compressed air consumers) have to be integrated into an energy monitoring network.

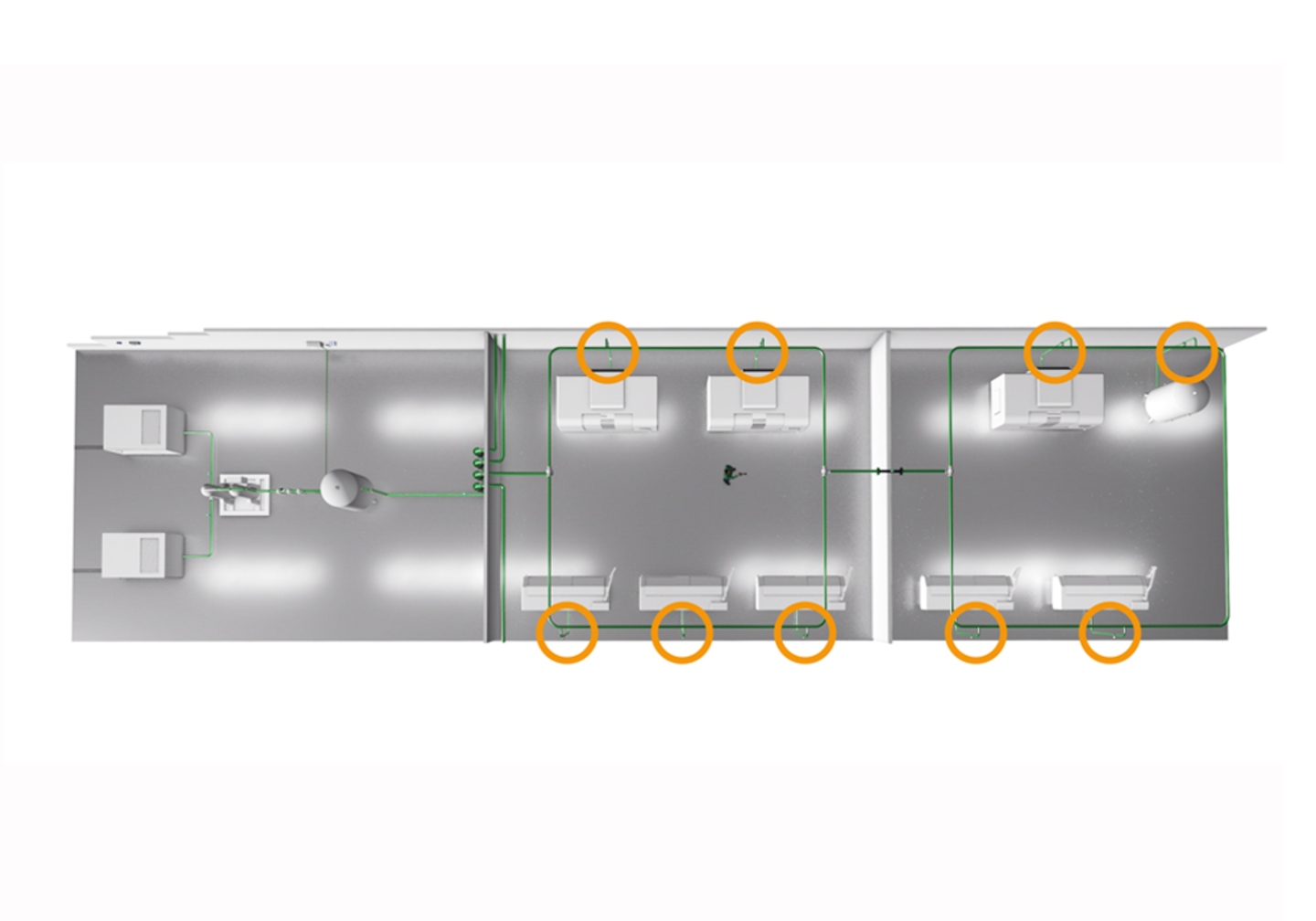

Reduce your energy costs and increase your sustainability with the VA 525 compact sensor. Monitor the consumption of individual machines and analyze your leakage flows with just one measuring device.

Details

Measurement of mass flow rate, output of standard volume flow rate without additional measurement of pressure and temperature
Compact device for installation in limited space, no inlet and outlet sections necessary thanks to integrated flow straightener
Available with built-in pressure sensor
Highly accurate at small as well as large flows
No moving parts, therefore low maintenance
Applicable for compressed air and nitrogen
04…20 mA and pulse or a Modbus RTU (RS 485) interface as standard
Optional interfaces such as Modbus TCP (Ethernet), PoE, M-Bus available
Pressure range up to 16 bar
Temperature range up to 60°C
Integrated display to show the measured values
Available from 1/4″ to 2”

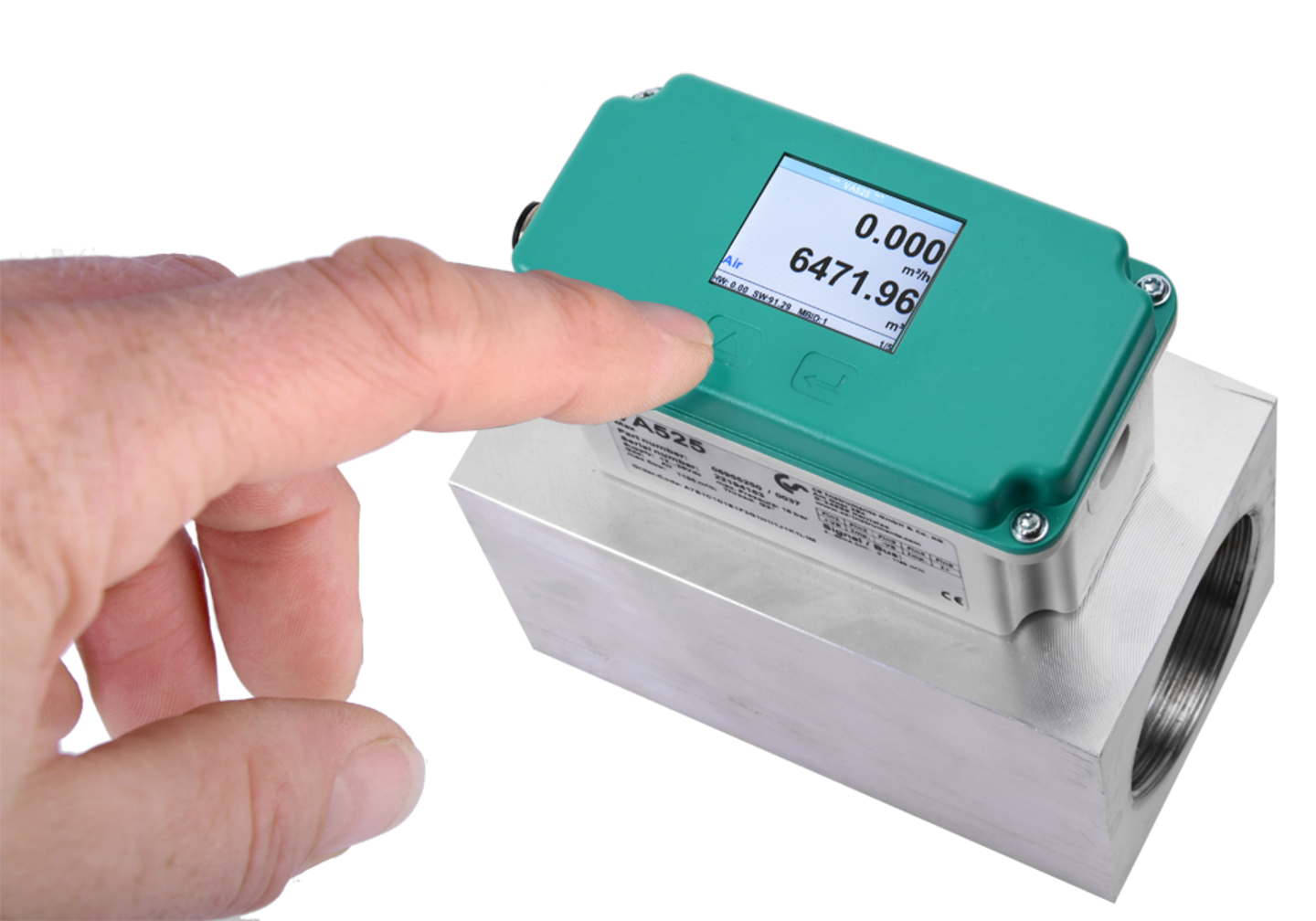

Settings adjustable via the keys of the display
Main counter can be reset via the display
For speeds up to 224 Nm/s
Highly accurate with an accuracy of ± 1.5% or ± 1% of the measured value – as well as ± 0.3% of the final value

[penci_button link=”https://page.line.me/006xhmgy” icon=”fa fa-comments” icon_position=”left” target=”_blank”]ขอใบเสนอราคา[/penci_button] [penci_button link=”/wp-content/uploads/2023/06/KUGA-KGB4-Pressure-Gauge-Rev-A.pdf”]ดาวน์โหลด Catalog[/penci_button]

ขอใบเสนอราคา

ปรึกษาวิศวกร

Category: Solenoid Valves Tags: cs-instruments, Flow meter, VA 500 Brand: CS-Instruments

VA 525 – Compact Inline flow meter for compressed air and nitrogen

Features

The innovative VA 525 combines modern digital interfaces for connection to an energy monitoring system with a small, compact design. The VA 525 is always used when many machines (compressed air consumers) have to be integrated into an energy monitoring network
Reduce your energy costs and increase your sustainability with the VA 525 compact sensor. Monitor the consumption of individual machines and analyze your leakage flows with just one measuring device

ค่า	20W / "l" 40W / "l" 50W / "l" 60W
