Details

• Measurement of mass flow rate, output of standard volume flow rate
• High accuracy for both small and large flows
• Pressure and temperature compensated by the thermal mass flow principle

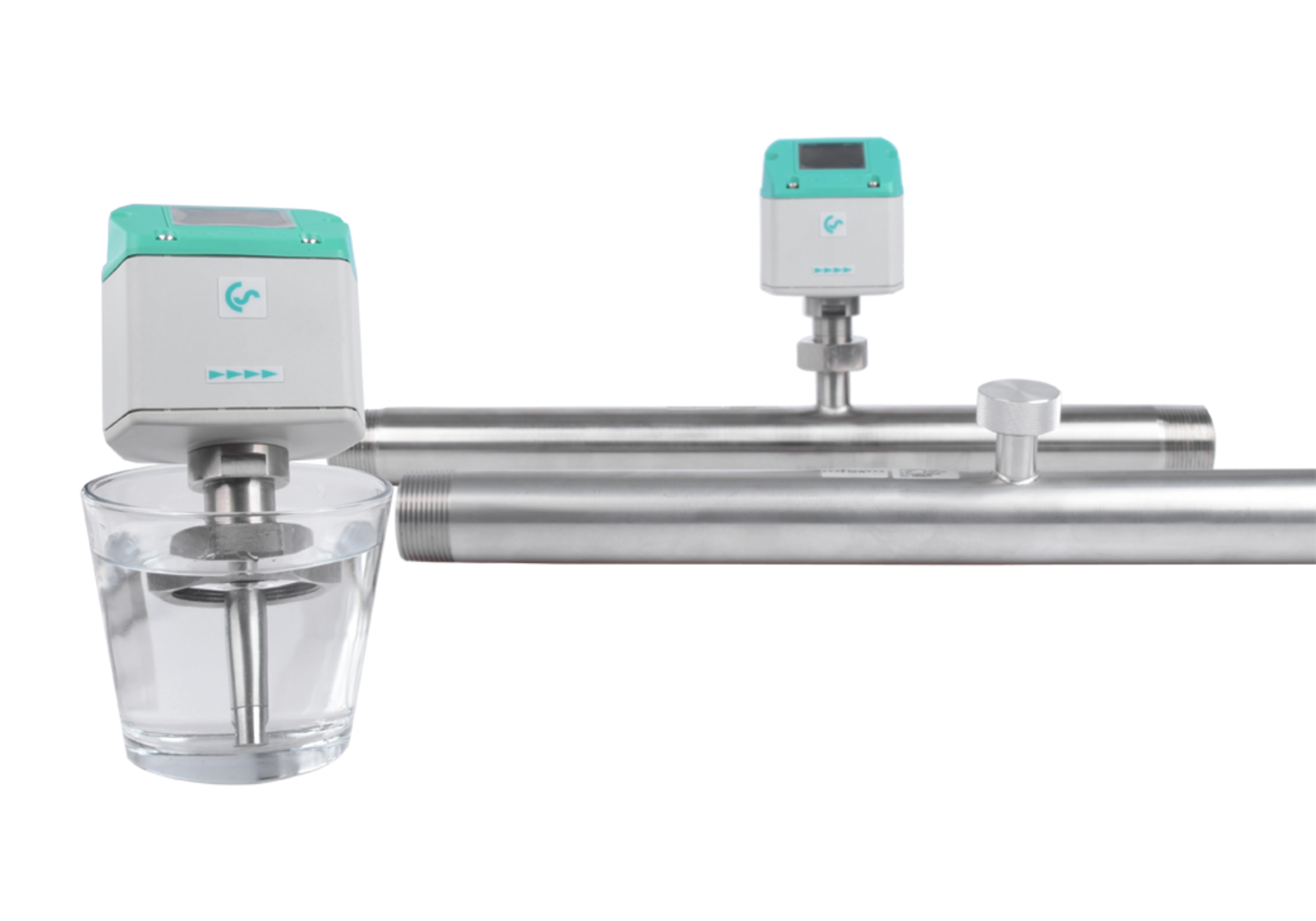

• Easy installation and removal of the sensor, the integrated measuring section can remain in the line for cleaning or
• recalibration of the sensor and can simply be closed with a sealing cap
• No moving parts, therefore low maintenance
• Vanishingly low pressure loss due to vanishingly low blockage of the diameter
• Can be used for compressed air and non-corrosive gases such as nitrogen, oxygen, argon, helium, etc.
• 04…20 mA, pulse and a Modbus RTU (RS 485) interface as standard, optional interfaces such as Modbus TCP (Ethernet), PoE, M-Bus
• Optional interfaces such as Modbus TCP (Ethernet), PoE, M-Bus
• Optional: Bi-directional measurement
• Pressure range up to 40 bar
• Temperature range from -30 to 80°C
• Protection class IP65

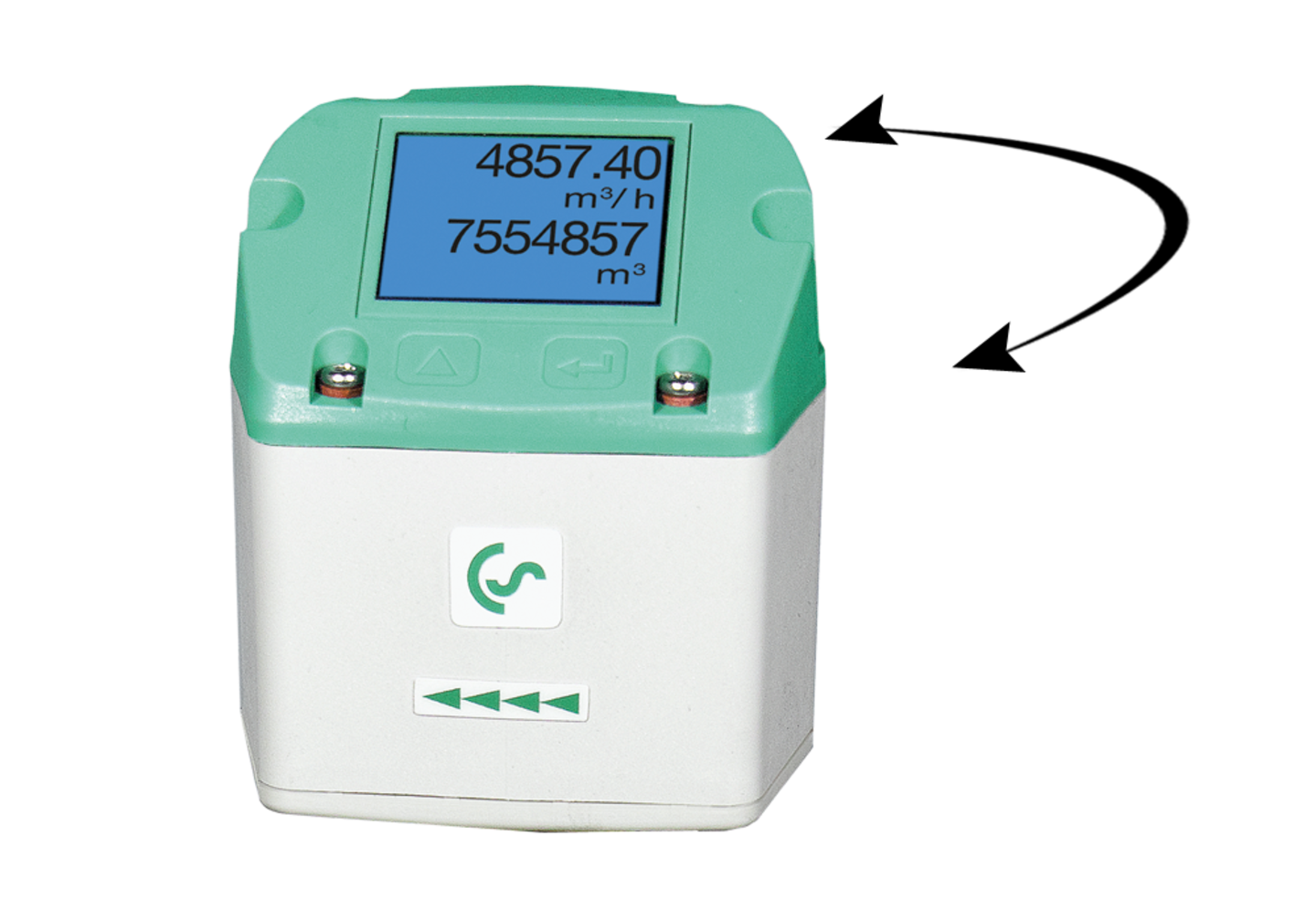

• Integrated display to show the measured values

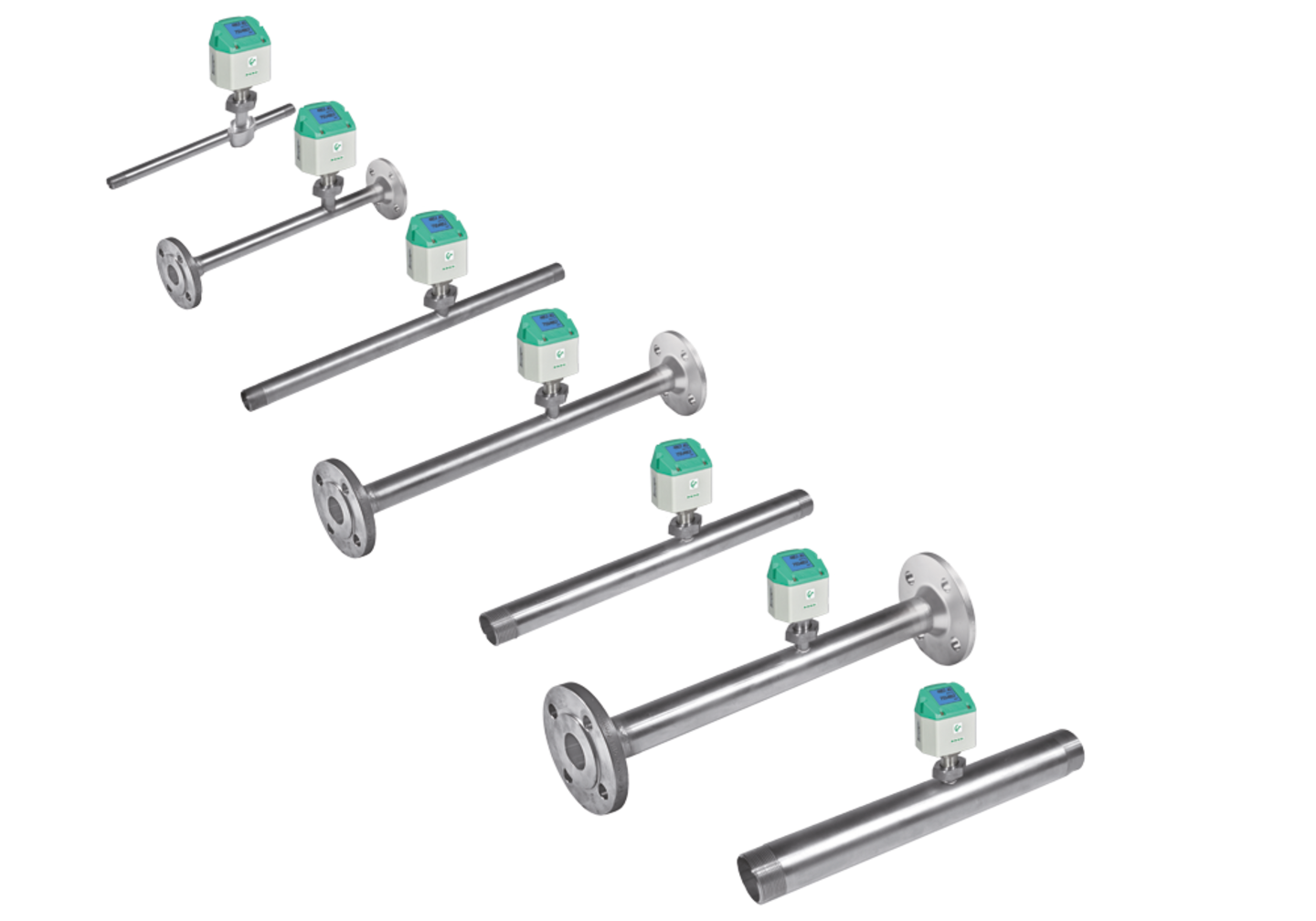

• Can be used from DN 8 to DN 80

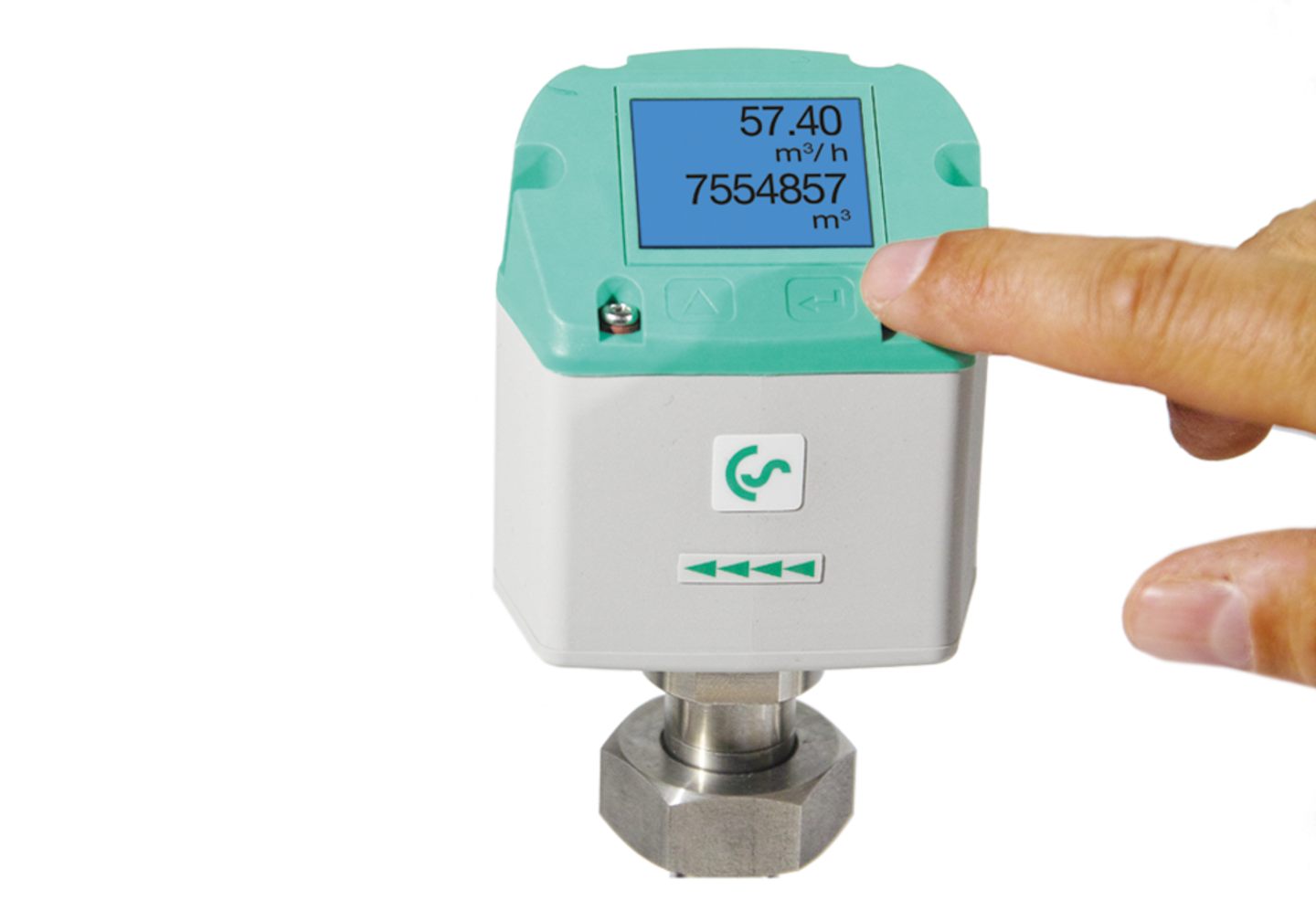

• Settings adjustable via the keys of the display
• Main counter reading can be reset via the display
• For velocities up to 224 Nm/s
• Highly accurate with an accuracy of ± 1.5% or ± 1% of the measured value – as well as ± 0.3% of the final value
