Pressure Gauge KGB2
Features

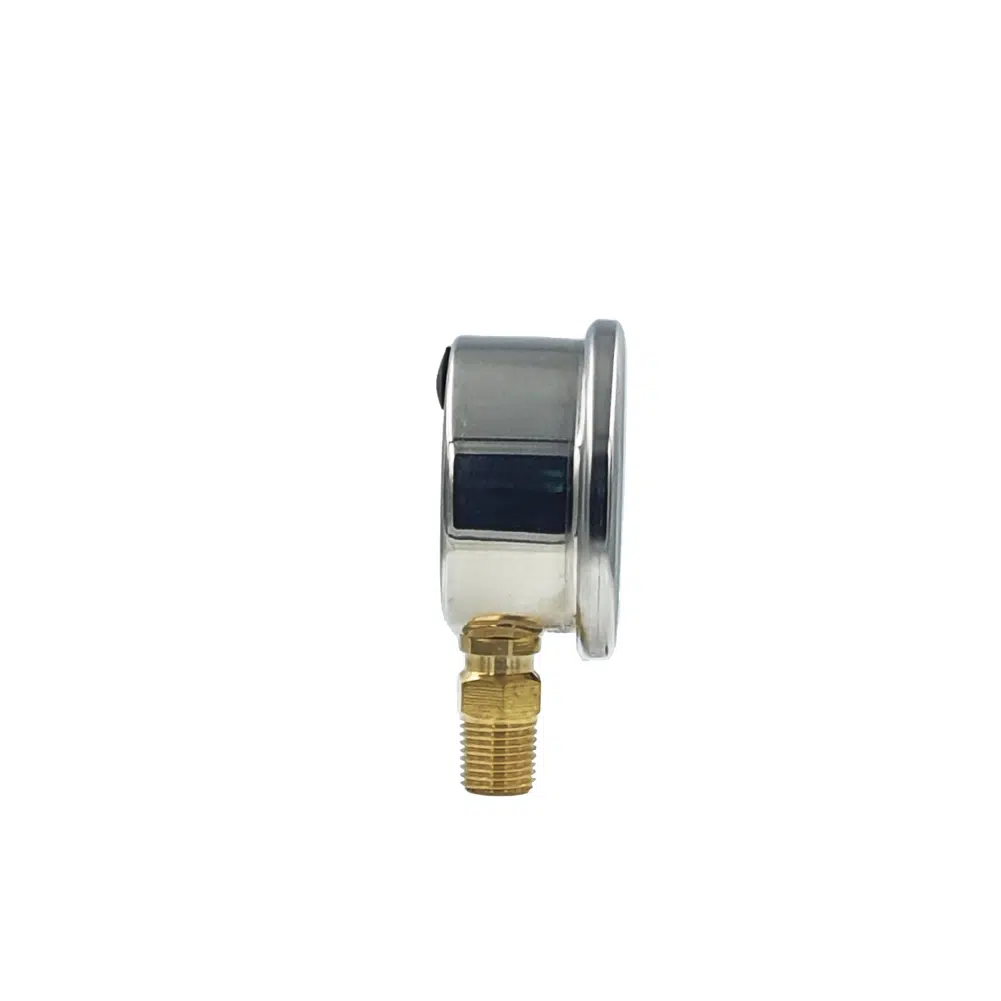

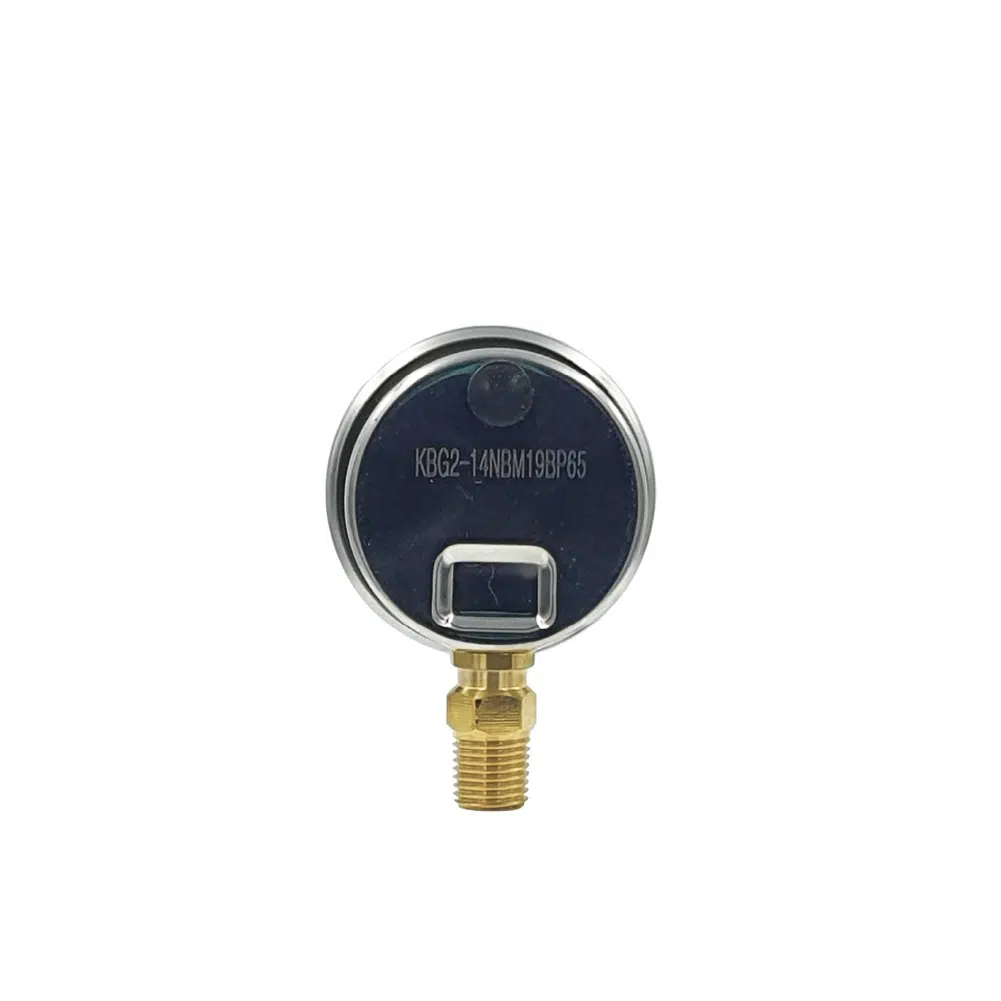

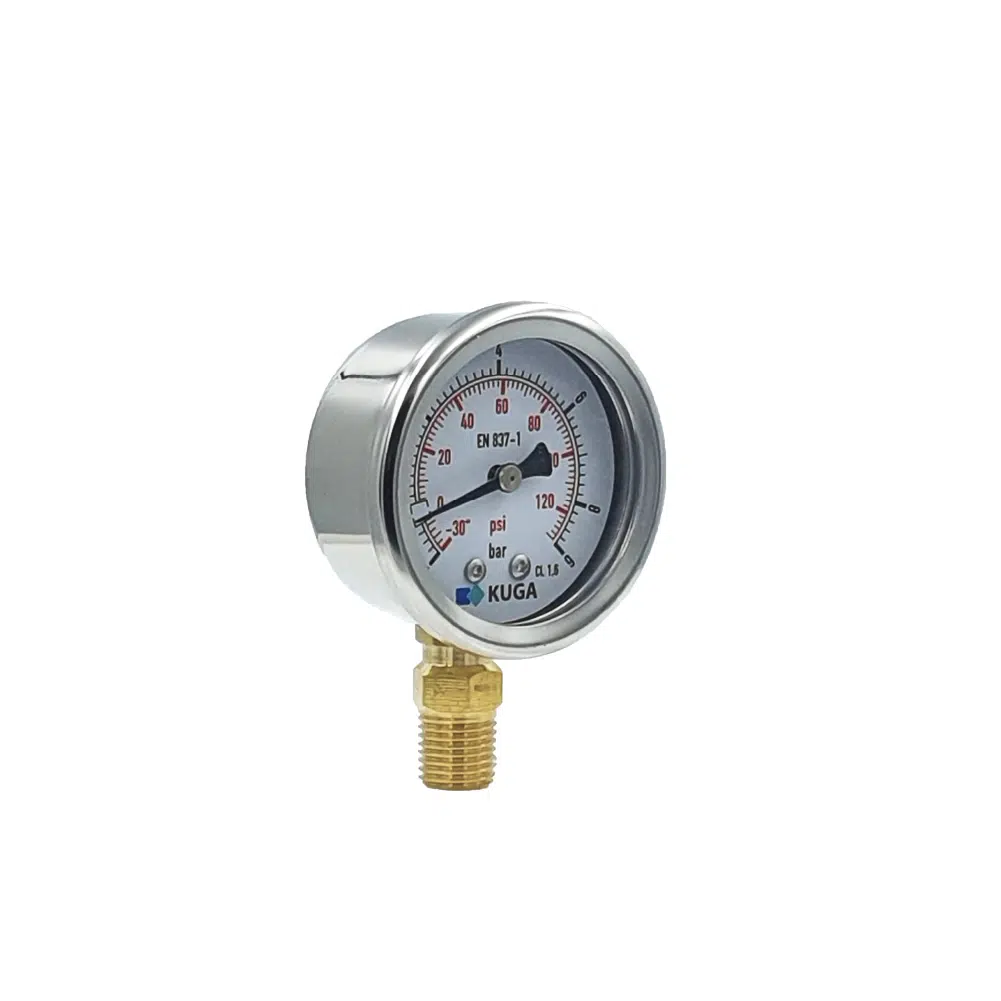

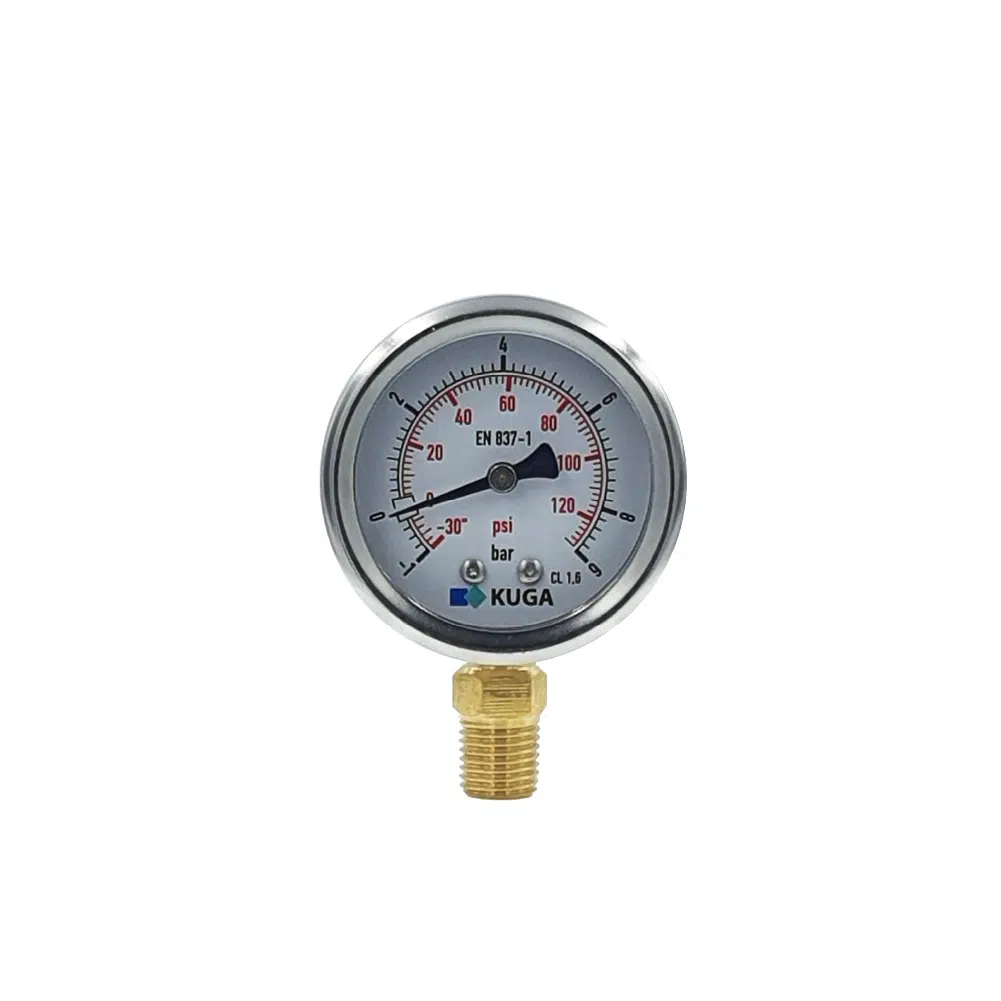

Mechanical pressure gauge
- For gaseous and liquid media that are not highly viscous or crystallising and will not attack copper alloy parts
- Pneumatics
- Heating and air-conditioning technology
- Medical engineering
- Class 1.6 according to EN 837-1
- IP55 Protection rating (EN 60529)
Technical Data
| Housing | |
|---|---|
| Nominal size | 50 mm |
| Case material | Stainless steel 1.4301 / AISI 304 |
| Type of housing | Crimped bezel ring |
| Bezel ring material | Stainless steel 1.4301 / AISI 304 |
| Window material | Polycarbonate |
| Window gasket | Elastomer |
| Protection rating (EN 60529) | IP55 |
| Dial | White, aluminium |
| Pointer | Black, aluminium |
| Movement material | Brass |

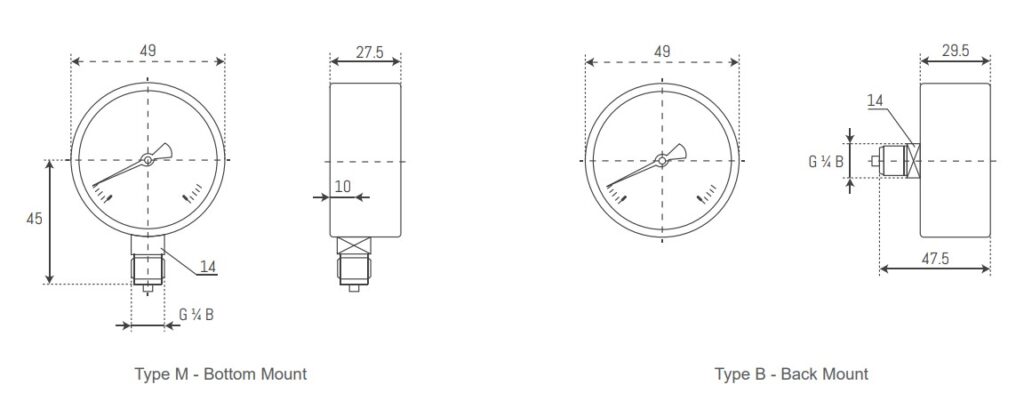

Technical Drawing
