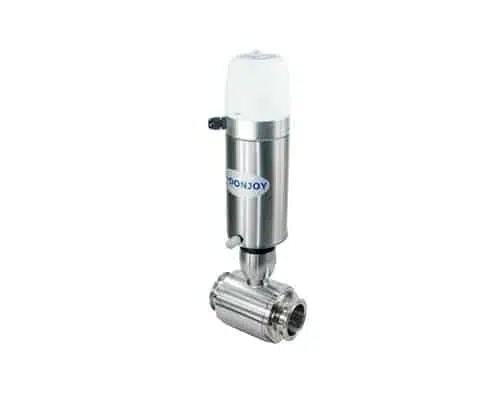

Pneumatic ball valve with C TOP
Pneumatic ball valve with C TOP, Both manually and automatically operated valve are mainly used in processing beverages, wine, oil refining, cosmetics and chemical industries.
Description
- Size：1″-4″,DN25-DN100
- Temperature：-20℃ – 120℃
- Pressure：10-bar
- Material：AISI 304 316L
- Gaskets:PTFE FDA 177.1550
- No matter what kind of liquid flow is, the handle can be mounted on the side of the valve body
- Whatever the connection is, it does not change the total length of the valve
- Connection : Clamp, weld, thread,flange,DIN、SMS、RJT、FIL
- Material contact partsAISI，304/316L
- Other parts AISI 304
- Certificate：PED，97/23EC
- Power supply：DC 24V±10%
- Single-acting (standard), double acting (option)
- Self-adjusting valves feature feedback
- Supports analog signal (4-20mA) & amp; electrical signal (DC24V) Output
- SupportsAS-I BUS
- Supports manual and automatic operation
