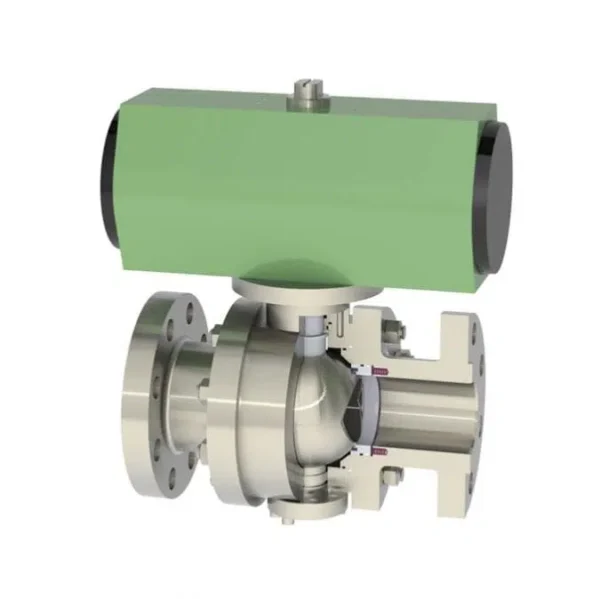

OpTB™ Trunnion Mounted V-Notch Ball Valve

The OpTB is no longer limited to a full-port option and is available in a reduced-port API 607 Fire Safe V-Notch Ball Control Valve configuration that effectively adds throttling capabilities to a traditional, proven three-piece on/off ball valve design. This is an ideal valve for throttling applications in the Midstream Oil & Gas industry where pressure classes and differentials extend beyond the capabilities of the OpVEE.

• 200 to 1 Rangeability/Turndown
• Metal & Soft Seating Available
• Standard ISO Shaft and Mounting Pad compatible with multiple types of actuators
• Conforms to API 6D and API 607

Description

• Control Valve Type : V-Notch Ball, Trunnion Ball
• Sizes (NPS) : 2″, 3″, 4″, 6″, 8″, 10″, 12″, 14″, 16″, 18″, 20″, 24″, 28″, 32″, 36″, 40″, 42″, 46″, 48″, 52″, 56″
• Body Styles : Three-Piece, Vacuum Jacketed, Steam Jacketed
• Body Materials : Carbon Steel, Stainless Steel, Alloy, Chrome Moly
• Ball & Shaft Materials : 17-4 pH, 440 Stainless Steel, CF8M Stainless Steel + Hard Chrome, Nitronic
• Seat Materials : Graphite, Inconel, Kel-F, PEEK, PTFE, Stainless Steel
• Pressure Class (ASME/ANSI) : CL150, CL300, CL600, CL900, CL1500, CL2500
• Shutoff Class (ANSI) : Class VI, API Fire Safe
• End Connections : RF Integral Flange, RTJ, Grayloc
• Service : General, Corrosive, Dirty
• Operating Temperature : Standard, High, Cryogenic
• Flow Characteristic : Equal Percentage
• Industries : Chemical/Petrochemical, Food & Beverage, Metals & Mining, Oil & Gas, Power, Pulp & Paper, Refining
• Standards & Norms : ANSI/ISA, API 607, API 6D, ASME, NACE
