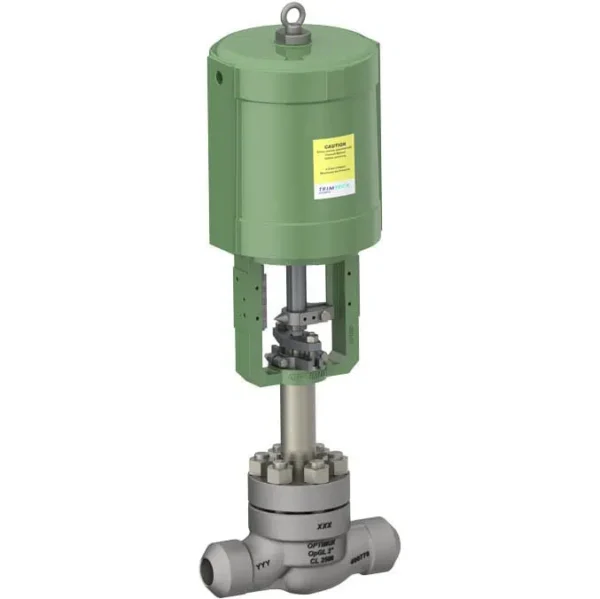

OpGL™ Globe Control Valve
Optimux OpGL Globe Control Valves are Trimteck’s flagship product. The OpGL has been engineered to provide superior performance while permitting easy, fast, and inexpensive maintenance. Unlike diaphragm-operated control valves, the Piston cylinder-actuated OpGL™ provides stiffness and maintains high positioning accuracy – making for the world’s most efficient and accurately responsive valve.
- Precise Control Broad range of control through a top-guided, unbalanced, single-piece plug with flow characterization built in to the geometry of the plug head.
- Exceptional Shutoff Standard ANSI Class V metal-to-metal shutoff in process achieved with unique plug and seat ring design. ANSI Class VI available in soft seated configuration.
- High Thrust Piston Actuator More accurate and quicker than diaphragm actuators, and offering a smaller and lighter footprint – ideal for skid-mounted process equipment.
- Maintainability Top-entry design facilitates maintenance, even though the valve has a much longer MTBS Cycle than competing diaphragm-actuated valves.
- Range of Trim Configurations From micro-flows to full capacity trims, and everything in between, the OpGL can be sized to optimally control according to your specific process parameters. A full line of anti-cavitation and noise abatement trims available
Description OpGL™ Globe Control Valve
- Control Valve Type : Globe, Custom-Engineered/Specialty
- Sizes (NPS) : 1/2″, 3/4″, 1″, 1 1/2″, 2″, 3″, 4″, 6″, 8″, 10″, 12″, 14″, 16″, 18″, 20″, 24″
- Body Styles : Globe, Angle, 3-Way, Y-Pattern, Fabricated (XT), Vacuum Jacketed, Steam Jacketed
- Body Materials : Carbon Steel, Stainless Steel, Alloy, Chrome Moly
- Pressure Class (ASME/ANSI) : CL150, CL300, CL600, CL900, CL1500, CL2500, CL4500
- Shutoff Class (ANSI) : Class IV, Class V, Class VI
- End Connections : RF Integral Flange, NPT, RTJ, Socketweld, Buttweld, Grayloc
- Service : General, Low Flow, Corrosive, Erosive, Dirty, Zero Fugitive Emissions, Cavitation, Noisy, Flashing
- Operating Temperature : Standard, High, Cryogenic
- Flow Characteristic : Equal Percentage, Linear, Bi-Linear, Quick Open, Custom
- Industries : Aerospace & Defense, Chemical/Petrochemical, Food & Beverage, Industrial Gases, Metals & Mining, Oil & Gas, Power, Pulp & Paper, Refining
- Standards & Norms : ANSI/ISA, ASME, CRN, NACE, PED
