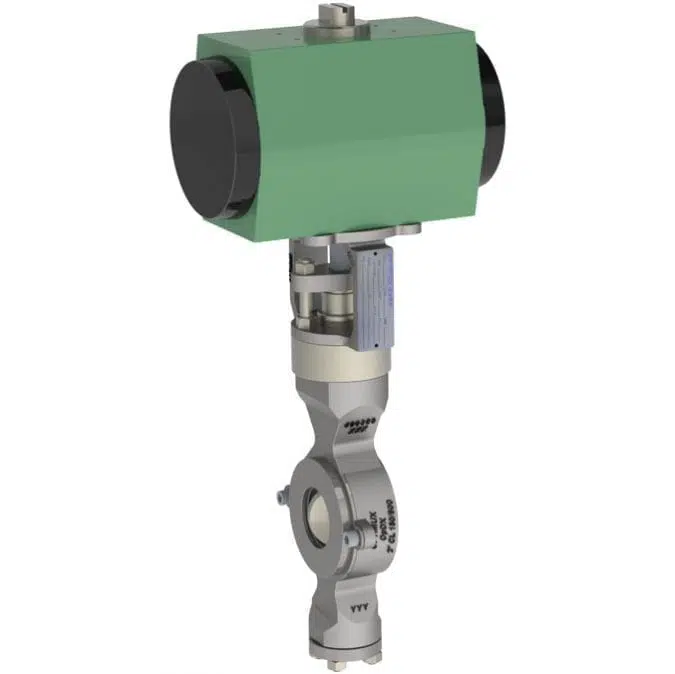

OpDX™ High Performance Butterfly Valve
The OpDX High Performance Butterfly Control Valve uses a pressure-assisted seating concept to achieve bi-directional bubble-tight shutoff while maintaining a low breakout torque requirement. Available in ANSI Class 150 to 600 and 2” to 36”, the OpDX has a characterized disc enabling throttling.
- Metal & Soft Seating Available
- Available in metal (ANSI Class IV) or soft seat (ANSI Class VI)

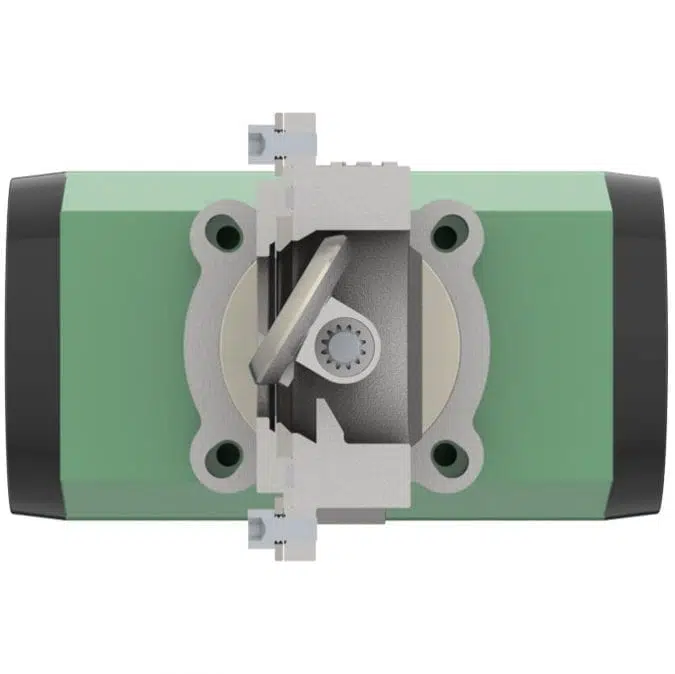

- Eccentric disc lifts off of the seat to prevent wear
- Accurate throttling achieved with modified parabolic geometry machined into the seat
- Rugged and lightweight flangeless wafer body
- MSS SP-67 face-to-face permits shorter flange bolting than ball or eccentric plug valves, increasing safety and reducing possibility of leakage
Description
- Control Valve Type : Butterfly
- Sizes (NPS) : 2″, 3″, 4″, 6″, 8″, 10″, 12″, 14″, 16″, 18″, 20″, 24″, 28″, 32″, 36″
- Body Materials : Carbon Steel, Stainless Steel
- Disc & Shaft Materials : 17-4 pH, 440 Stainless Steel, CF8M Stainless Steel + Hard Chrome, Nitronic
- Seat Materials : Inconel, Kel-F, PEEK, PTFE, Stainless Steel
- Pressure Class (ASME/ANSI) : CL150, CL300, CL600
- Shutoff Class (ANSI) : Class VI
- End Connections : Wafer/Flangeless
- Service : General
- Operating Temperature : Standard
- Flow Characteristic : Modified Parabolic
- Industries : Aerospace & Defense, Chemical/Petrochemical, Food & Beverage, Metals & Mining, Oil & Gas, Power, Pulp & Paper, Refining
- Standards & Norms : ANSI/ISA, ASME, NACE
