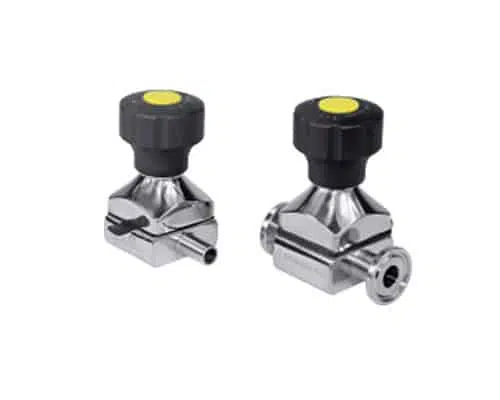

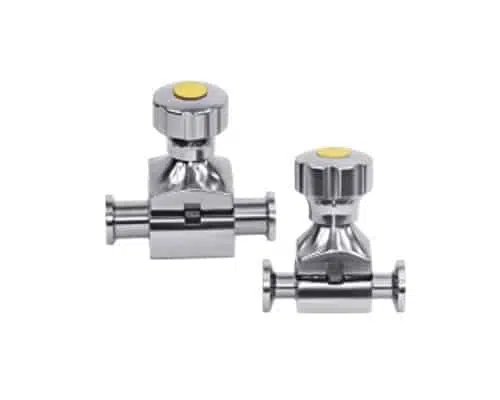

Mini Manual Diaphragm Valve
It is mainly used in liquid sampling, biological systems, laboratories and other projects. The valve is used in the pharmaceutical filling system with a particular advantage that opening and closing times can be up to 150 million life in 3 bar working pressure.
Description
- Size: 1/4 “-3/4”, DN6-DN15
- Standard: BPE 3A DIN ISO IDF
- Certificate: PED/97/23/EC，3A/54-04/1580，FDA.177.2600
- Max Temperature: -30 ℃ to 150 ℃ (Depending on seal material)(Stainless steel actuator)
- Max Temperature: -30 ℃ to 130 ℃ (Depending on seal material)(Plastic actuator)
- Max Pressure: One way (DELTA P=100%)
- EPDM8bar, PTFE 6 bar(Option)
- EPDM6bar, PTFE 4.5 bar(Option)
- Double action EPDM 8 bar，PTFE 6 bar
- Assembling different actuators can meet higher pressure rating.
- Forged Body: 1.4404/316L/1.4435 BN2
- Casting the body: 1.4404/316L
- Connection: Clamp, Weld, Thread, Flange
- Operations: Manual and pneumatic
