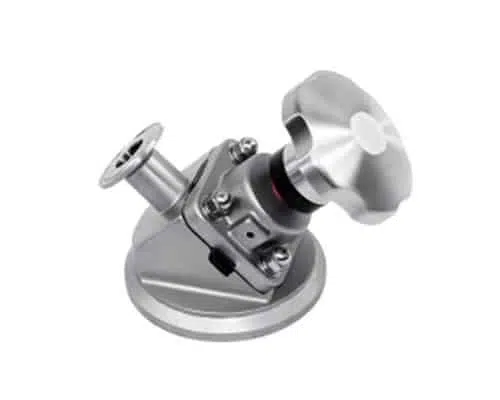

Manual diaphragm tank bottom valve

Manual diaphragm tank bottom valve is specially used for discharging medium from tanks,and no resort at the chamber.

Description

• Size: 1″-4″, DN25-DN100
• Pressure: 10bar (145 PSI)
• Material: ASTM 316L, 1.4404,1.4435 NB2 Fe <0.5%
• Temperature: –20 ℃ + 150 ℃
• Connection: Weld, Clamp, Thread, 3A BPE DIN SMS IDF ISO
• Body structure: U type tee + sampling valve; U-type links
• Diaphragm material: EPDM + PTFE (double layer) / EPDM / Silicon / FPM (Viton)
• Certificate: 3A-54-02 / 1580, PED 97/23 EC, FDA177.2600
