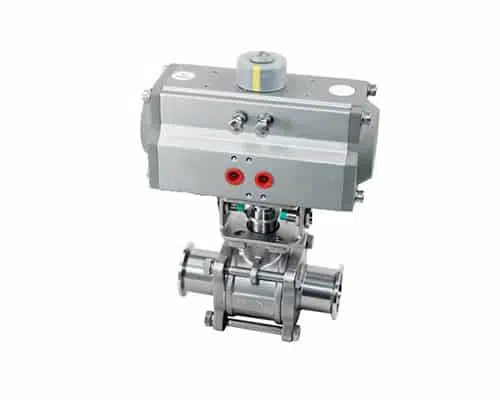

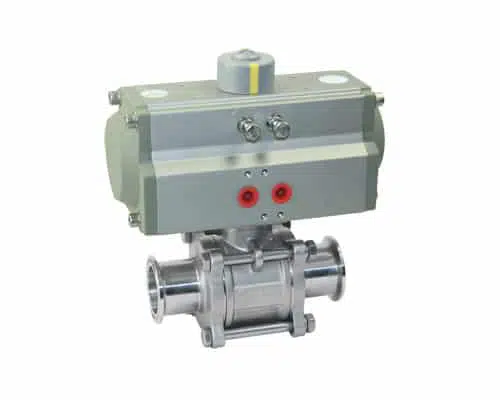

Horizontal pneumatic non-retention ball valve
Horizontal pneumatic non-retention ball valve
Horizontal pneumatic non-retention ball valve is full inclusive ball seat design that solves the problem of the liquid holdup of the valve cavity. The ball valve is suitable for bio pharmaceutical engineering.
Stem seal in patent design and spring in compensation type design have advantage of long life, low torque, long-term use under high temperature 150 ℃
Stem seal in patent design and spring in compensation type design have advantage of long life, low torque, long-term use under high temperature 150 ℃
Description
- Size： 1/2″-4″,DN10-DN100
- Temperature：-30℃ – 150℃
- pressure：10bar
- Material：304/1.4301,316L/1.4404
- Surface：Ra≤0.5μm
- Gasket:FDA 177.1550
- Connection : Clamp, weld, thread，DIN，SMS，ISO，IDF，BPE，RJT
- Function: switch type, adjustment type, passive contact
- Power supply: DC 24V AC 110V 220V
- The opening and closing time: 10/S-100/S
- Torque: 6N.M to 2000N.M
- Protection: IP67 grade
- Explosion-proof: EX DII BT4 (option)
