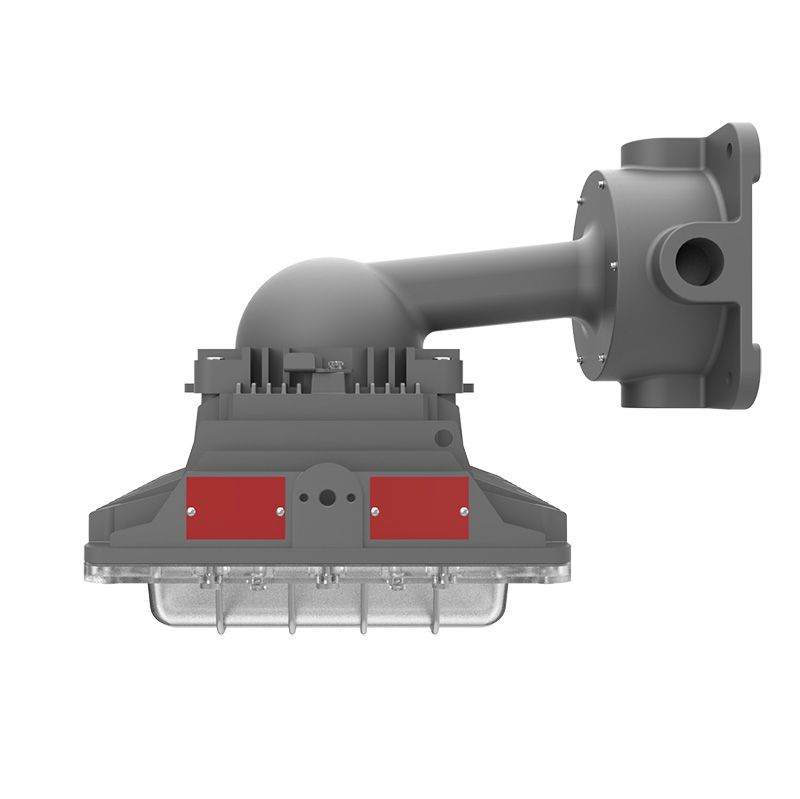

Hammer™ FEL-H Low Bay
Product description
The Hammer™ NJZ-FEL-H Series LED Luminaire is designed for installations where moisture, dirt, dust, corrosion and
vibration may be present, or NEMA 3 and 4X areas where wind, water, snow or high ambient can be expected.
They can be used in locations made hazardous by the presence of flammable vapors or gases or combustible dusts as
defined by the NEC and IEC.
NJZ-FEL-H Series is ideal for retrofit of existing HPS/MH and offers higher efficacy for increased energy savings, lower
maintenance costs and shorter paybacks.
Features / Advantages
- Best-in-class system efficacy – Up to 150 Lm / W
- Universal Voltage: AC120-277, 347-480V (50/60Hz)
- Instant illumination and restrike – no warm-up time required
- Ambient range -40°C-+65°C（-40°F-+ 149°F）
- Safe and reliable heat transfer – Offering a T-rating of T4A ( C1D2 ) / T6 ( CII D1 )
- Shock-and vibration-resistant – Durable LEDs with solder-less board connection
- Anti-corrosion housing tested 1000hrs to standard ASTM”B117-11”
- All exposed fasteners with quality stainless steel
- High Temperature silicone gasketing
- Thermal shock and impact resistant PC Lens for C1D2 models
- Harsh & Hazardous Duty
Compliance
NEC/CEC Standard
- UL844
- Class I Division 1, Group B, C, D* glass lens only
- Class I Division 2, Group A, B, C, D
- Class II Division 1, Group E, F, G
- Class III
- Class I, Zone 1, Group IIB+H2
- Class I, Zone 2, Group IIC
- Zone 21, Group IIIC
- UL 1598 Wet Locations
- UL 1598A Marine Outside Type (Salt Water)
- CSA C22.2 No.137
- CSA C22.2 NO. 250.0
- FCC
- IP66& IP67
- IK10 (PC) / IK08 (Glass)
- 5G vibration
- 1000hrs salt spray
Application
- Power Plants
- Heavy Industrials Storage Facility
- Paper mills
- Wastewater Treatment Plants
- Loading Docks Platforms
- Shipyards
- Chemical Processing Facility
- Petrochemical Processing Facility
Warranty
LED lumen Maintenance：L70>130,000 Operation Hours@65℃
Rugged Construction
For resistance to corrosion, water and dust, shock and vibrations, ensuring long-life and safe operation in harsh and hazardous environment
Excellent performance at a competitive price.
Four lumen outputs provide 70-250W HID/MH equivalent lighting (3,100 to 8,200Lm) that saves 70% percent in maintenance and energy costs
Compact and Light Design
for easy handling, especially when access to limited space with low mounting heights
Smart Lens choices
Diffused PC
For Minimum glare and shatter-proof
8 Mounting Options
Pendant
Wall 25°
Bracket
Stanchion 90°
Ceiling Mount
Wall 25°
Wall 90°
