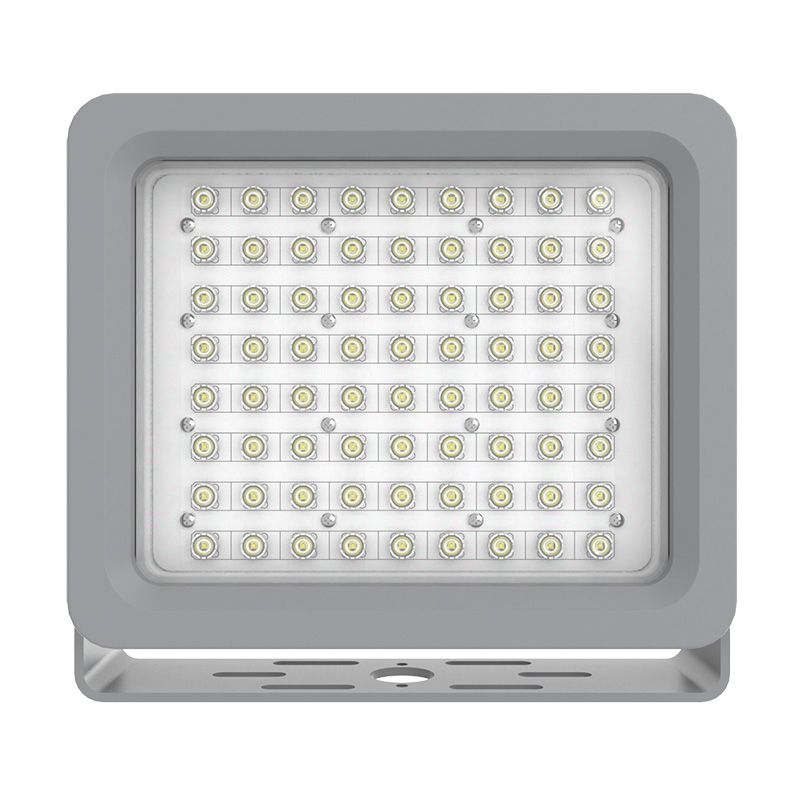

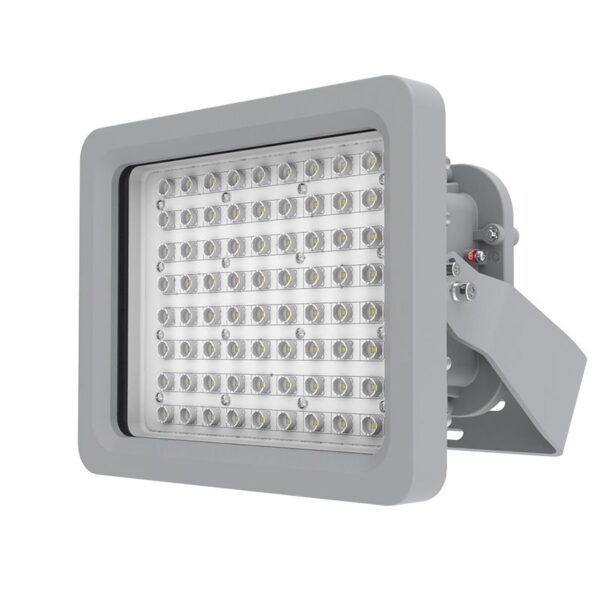

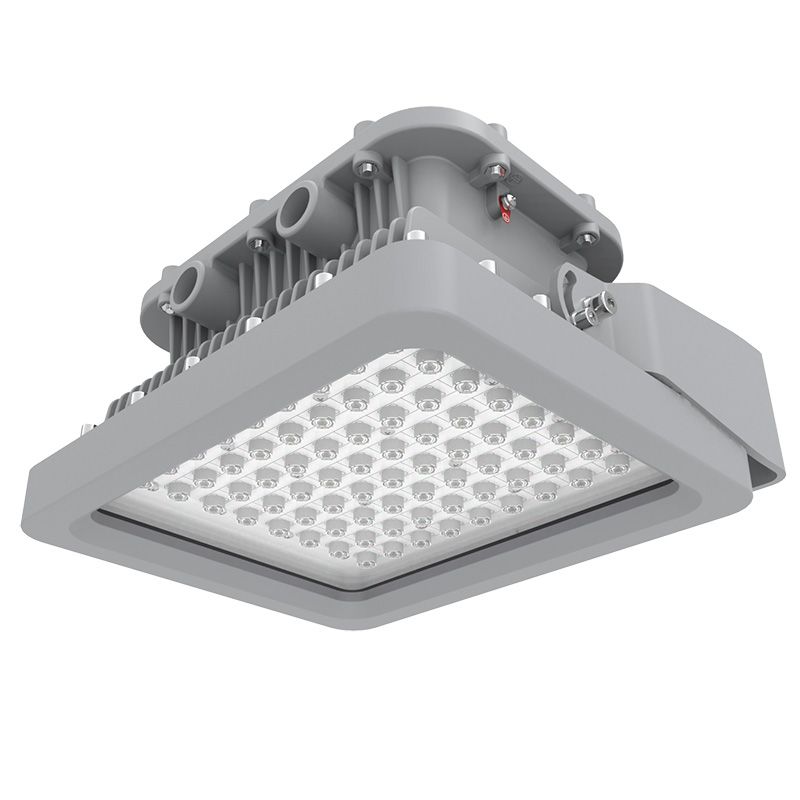

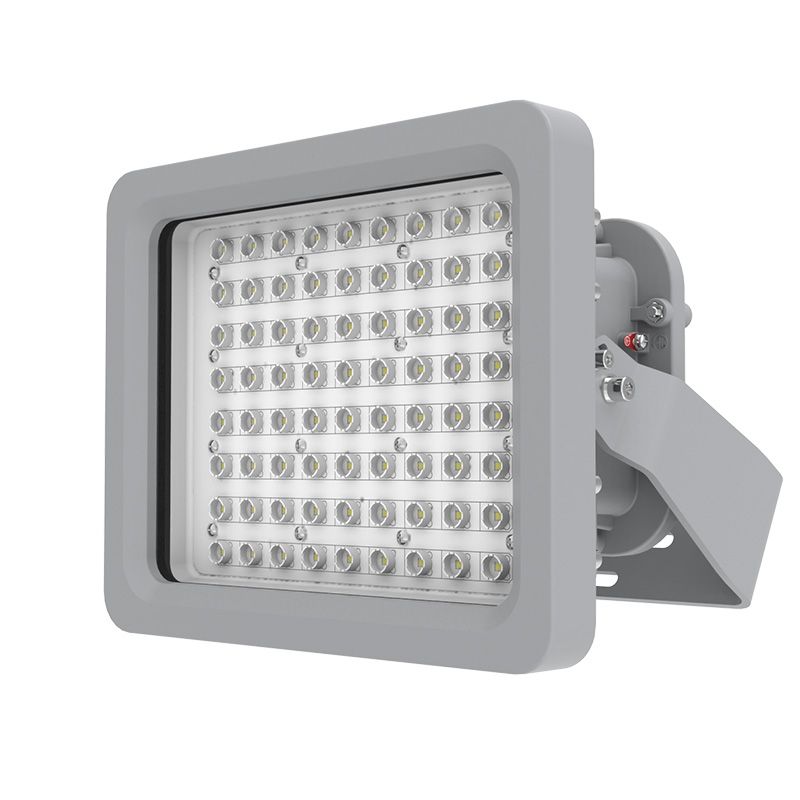

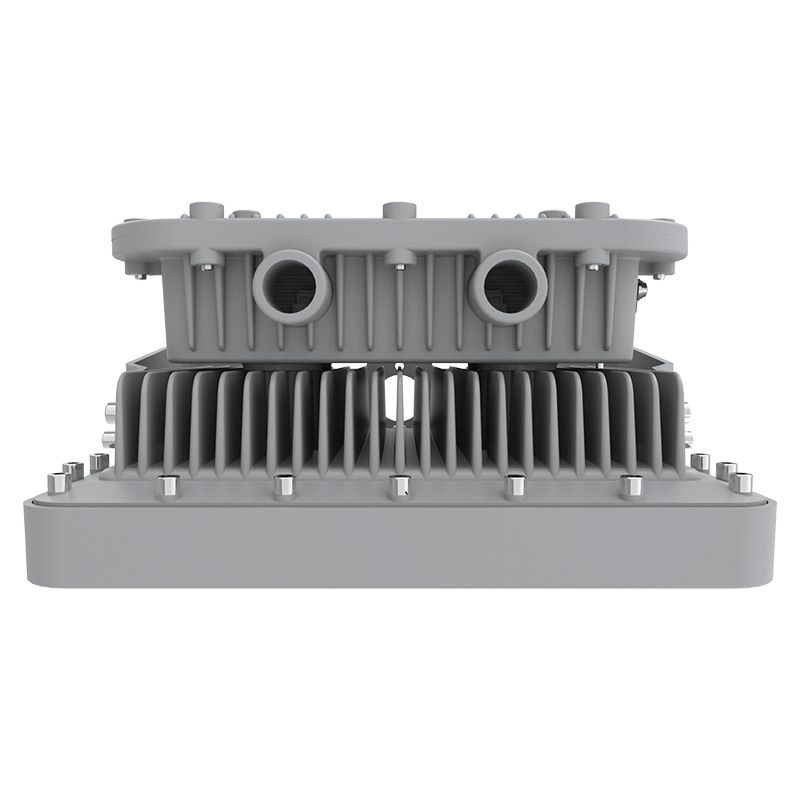

Defender™ FEL-B Flood
Product description
The Defender™ NJZ-FEL-B Series LED Luminaire is designed for installations where moisture, dirt, dust, corrosion and
vibration may be present, or areas where wind, water, snow or high ambient can be expected.
They can be used in locations made hazardous by the presence of flammable vapors or gases or combustible dusts as
defined by ATEX.
NJZ-FEL-B Series is ideal for retrofit of existing HPS/MH and offers higher efficacy for increased energy savings, lower
maintenance costs and shorter paybacks.
Features / Advantages
- Instant illumination and restrike no warm-up time required
- Wide power range from 80W to 150W
- High luminous efficacy-Up to 130 Lm/W
- Universal Voltage: AC100-270V (50/60Hz)
- Optional lighting distribution 25°, 60°, 110°
- Anti-corrosion aluminum housing tested 1000hrs to standard ASTM”B117-11”
(Marine reinforced ver. available upon request) - All exposed fasteners with quality stainless steel 316
- Robust design rated with IP66 / IK08 / 5G
Compliance
ATEX Standard
- Ex II 2G Ex d IIB T5 Gb
- Ex II 2D Ex tb IIIC 95℃ Max Db IP 66
- EN 60079-0, EN 60079-1, EN 60079-31
- Zone 1,21
- Zone 2,22
- Ta.-30~+50℃
- Enclosed and Gasketed
- IP66
- IK08
- 5G
- 1000hrs salt spray
Application
- Power Plants
- Heavy Industrials Storage Facility
- Paper mills
- Wastewater Treatment Plants
- Loading Docks Platforms
- Shipyards
- Chemical Processing Facility
- Petrochemical Processing Facility
Warranty
LED lumen Maintenance：L70>140,000 Operation Hours@50°C
Excellent performance at a competitive Cost.
Provide 250-600W HID/MH equivalent lighting (9,600 to 19,500Lm) that saves 70% percent in maintenance and energy costs

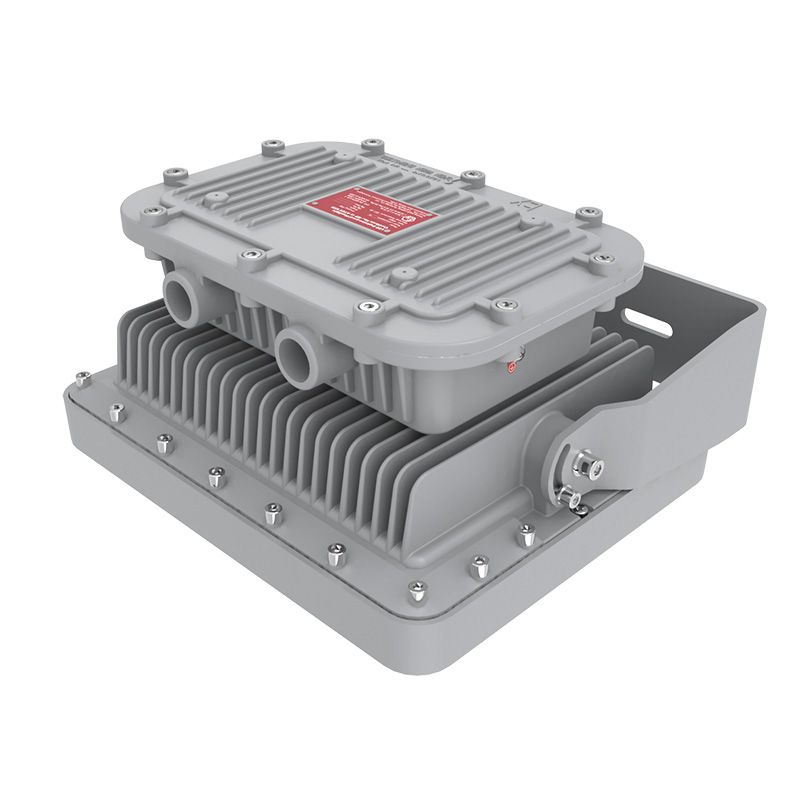

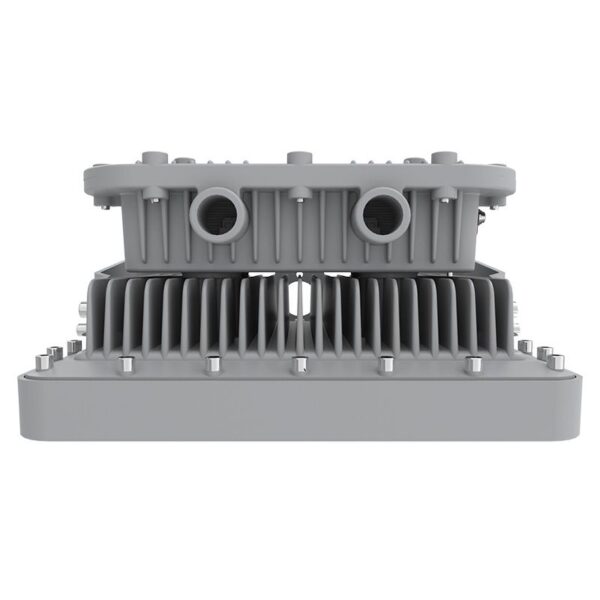

Thermal Management
Self-contained LED and Driver compartment with external air-flow fins provide exceptional heat dissipation to ensure long lifespan
3 Optic option
25°/ 60°/ 110°available for different applications from spot to flood for optimal light distribution
25°
60°
110°

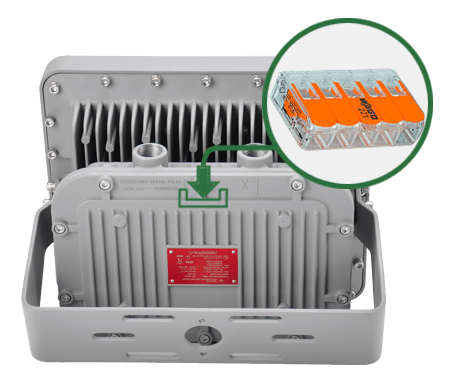

Easy and Through Wiring
A quick-access WAGO 5-pole lever connector that allows for easy wire-in / wire-out connection. (0.5-4mm²)
Protect your investment
Surge protector accessories available to add and protect the device from voltage spikes
Easy installation
Slip-fitter accessory available to facilitate mounting floodlight on pole top
Extra safety
Safety cable accessory available to add and protect the device from dislocation
